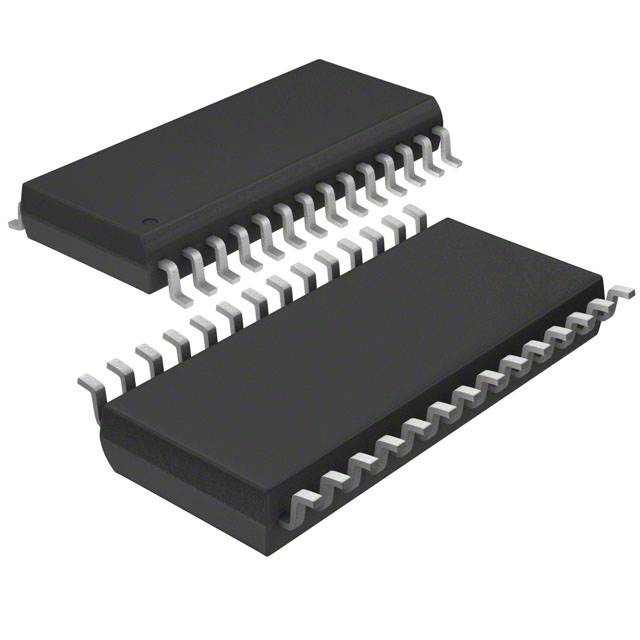

CY8C9520A-24PVXI

CY8C9520A-24PVXI

Part Number	CY8C9520A-24PVXI
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	448-CY8C9520A-24PVXI-ND CY8C9520A24PVXI -CY8C9520A CYPCYPCY8C9520A-24PVXI 448-CY8C9520A-24PVXI SP005653309 2832-CY8C9520A-24PVXI 428-2015-5-ND 428-2015-5 2156-CY8C9520A-24PVXI 2015-CY8C9520A-24PVXI
Description	IC XPNDR 100KHZ I2C 28SSOP
Detailed Description	I/O Expander 20 I2C 100 kHz 28-SSOP
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Interface I/O Expanders
Manufacturer		IR (Infineon Technologies)
Series
Packaging		Tube
Part Status		Active
Features		EEPROM, POR, PWM, WDT
Package / Case		28-SSOP (0.209", 5.30mm Width)
Output Type		Open Drain
Mounting Type		Surface Mount
Interface		I2C
Number of I/O		20
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		3V ~ 5.25V
Clock Frequency		100 kHz
Interrupt Output		Yes
Supplier Device Package		28-SSOP
Current - Output Source/Sink		10mA, 25mA
DigiKey Programmable		Not Verified

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CY8C9520A-24PVXI
Datasheets		Ship Label REV

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 877

Can ship immediately.
