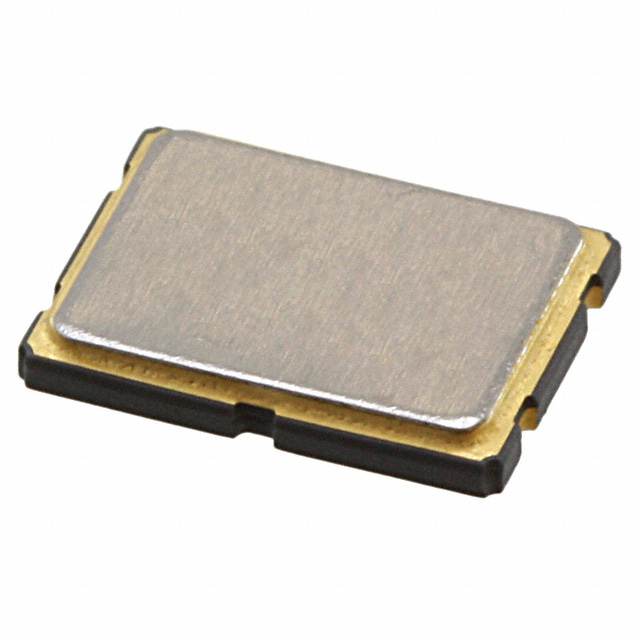

CX5Z-A2B2C5-70-8.0D18

CX5Z-A2B2C5-70-8.0D18

Part Number	CX5Z-A2B2C5-70-8.0D18
Manufacturer	Cardinal Components
Other Part Numbers	370-1141-2-ND 370-1141-1-ND 370-1141-6-ND CX5ZA2B2C5708.0D18 27302-00 370-1141-6 370-1141-1 370-1141-2
Description	CRYSTAL 8.0000MHZ 18PF SMD
Detailed Description	8 MHz ±20ppm Crystal 18pF 70 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	22 weeks

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Cardinal Components
Series		CX5
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		18pF
Size / Dimension		0.283" L x 0.205" W (7.20mm x 5.20mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±50ppm
Frequency Tolerance		±20ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.051" (1.30mm)
ESR (Equivalent Series Resistance)		70 Ohms
Frequency		8 MHz

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2334

Can ship immediately.
