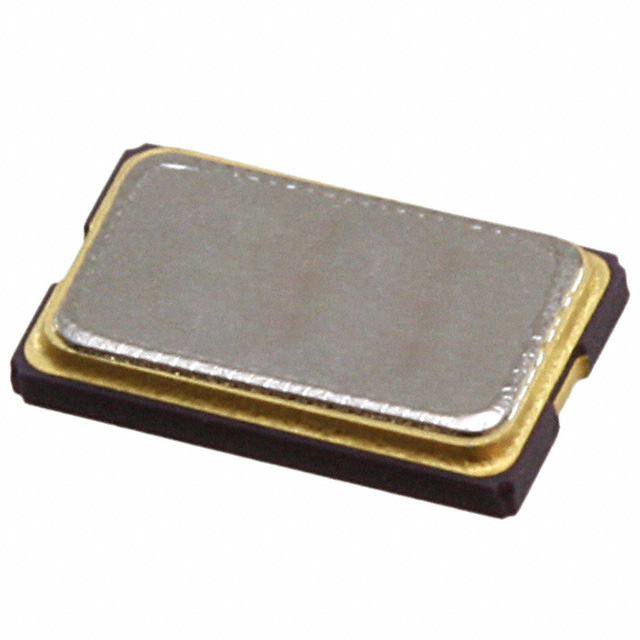

CX532Z-A2B3C5-70-16.0D18

CX532Z-A2B3C5-70-16.0D18

Part Number	CX532Z-A2B3C5-70-16.0D18
Manufacturer	Cardinal Components
Other Part Numbers	370-1175-2-ND 370-1175-1-ND 370-1175-6-ND CX532ZA2B3C57016.0D18 370-1175-6 370-1175-2 370-1175-1
Description	CRYSTAL 16.0000MHZ 18PF SMD
Detailed Description	16 MHz ±20ppm Crystal 18pF 70 Ohms 2-SMD, No Lead
Manufacturer Standard Lead Time	22 weeks

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Cardinal Components
Series		CX532
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		2-SMD, No Lead
Load Capacitance		18pF
Size / Dimension		0.197" L x 0.126" W (5.00mm x 3.20mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±30ppm
Frequency Tolerance		±20ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.059" (1.50mm)
ESR (Equivalent Series Resistance)		70 Ohms
Frequency		16 MHz

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3914

Can ship immediately.
