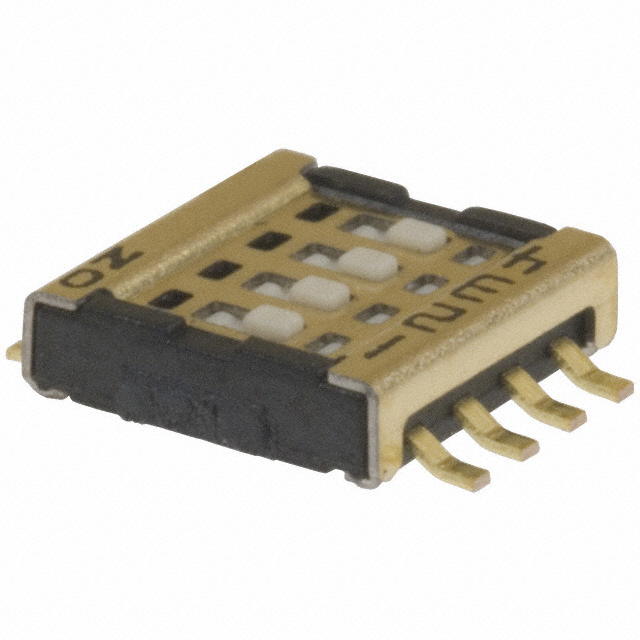

CVS-04TB

CVS-04TB

Part Number	CVS-04TB
Manufacturer	Nidec Copal Electronics (Nidec Components)
Other Part Numbers	563-1041-2-ND 563-1041-1-ND 563-1041-6-ND 563-1041-6 CVS04TB 563-1041-1 Q8427385 563-1041-2
Description	SWITCH SLIDE DIP SPST 0.1A 6V
Detailed Description	Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 100mA 6VDC
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches DIP Switches
Manufacturer		Nidec Copal Electronics (Nidec Components)
Series		CVS
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Contact Finish		Gold
Voltage Rating		6VDC
Current Rating (Amps)		100mA
Mounting Type		Surface Mount
Pitch		0.039" (1.00mm)
Circuit		SPST
Operating Temperature		-40°C ~ 85°C
Termination Style		Gull Wing
Actuator Type		Slide (Standard)
Height Above Board		0.057" (1.45mm)
Actuator Level		Raised
Washable		No
Contact Material		Stainless Steel
Number of Positions		4

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CVS-04TB
Datasheets		Mult Dev Reel Color Chg 30/Jan/2019
Datasheets		CVS-04TB

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9065
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 5848

Can ship immediately.
