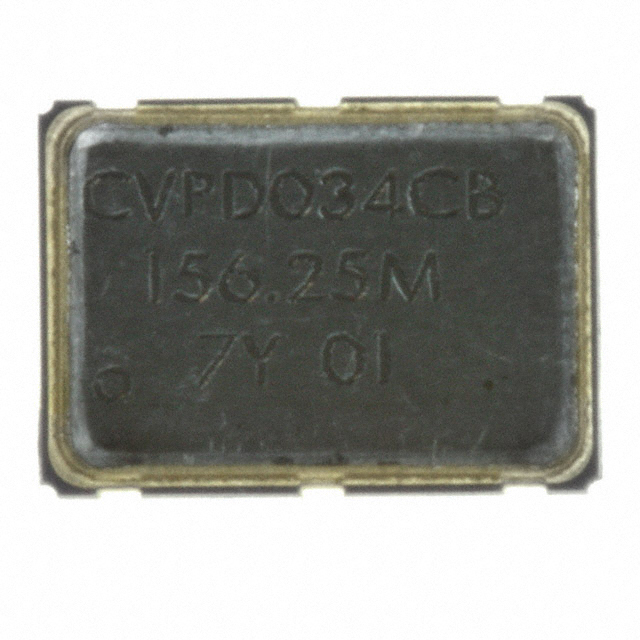

CVPD-034-50-156.25

CVPD-034-50-156.25

Part Number	CVPD-034-50-156.25
Manufacturer	Crystek Corporation
Other Part Numbers	744-1220-ND 744-1220
Description	XTAL OSC VCXO 156.2500MHZ LVPECL
Detailed Description	156.25 MHz VCXO LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Crystek Corporation
Series		CVPD-034
Packaging		Strip
Part Status		Active
Package / Case		6-SMD, No Lead
Size / Dimension		0.276" Dia x 0.197" T (7.00mm x 5.00mm)
Mounting Type		Surface Mount
Output		LVPECL
Function		Enable/Disable
Type		VCXO
Operating Temperature		0°C ~ 70°C
Voltage - Supply		3.3V
Current - Supply (Max)		88mA
Height - Seated (Max)		0.071" (1.80mm)
Absolute Pull Range (APR)		±50ppm
Frequency		156.25 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CVPD-034-50-156.25
Datasheets		CVPD034 Series Top
Datasheets		CVPD034 Series Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
