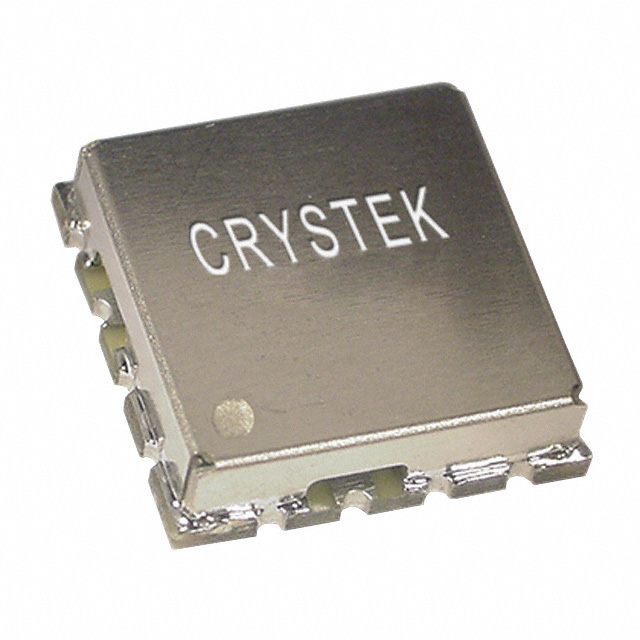

CVCO55BE-2130-2220

CVCO55BE-2130-2220

Part Number	CVCO55BE-2130-2220
Manufacturer	Crystek Corporation
Other Part Numbers	744-1131-ND 744-1131
Description	VCO 2175MHZ 0.5-4.5V 12.7X12.7MM
Detailed Description	2175MHz Center Frequency 0.5 V ~ 4.5 V Voltage Controlled Oscillator 0 ±2 dBm -12 2nd Harmonic Typ (dBc)
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators VCOs (Voltage Controlled Oscillators)
Manufacturer		Crystek Corporation
Series		CVCO55
Packaging		Strip
Part Status		Active
Package / Case		16-QFN, Variant
Size / Dimension		0.500" L x 0.500" W (12.70mm x 12.70mm)
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		5V
Height		0.150" (3.81mm)
Frequency Range		2130 ~ 2220MHz
2nd Harmonic, Typ (dBc)		-12
Frequency - Center		2175MHz
Icc Max		25mA
Pushing (MHz/V)		3
Phase Noise Typ (dBc/Hz)		-101
Power (dBm)		0 ±2
Tuning Voltage (VDC)		0.5 V ~ 4.5 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CVCO55BE-2130-2220
Datasheets		VCO Selector Guide
Datasheets		CVCO55xx Series Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
