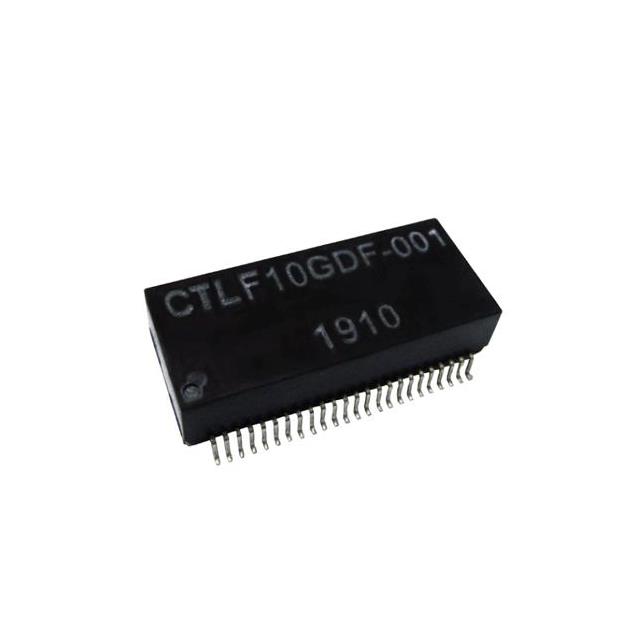

CTLF10GDF-001

CTLF10GDF-001

Part Number	CTLF10GDF-001
Manufacturer	Central Technologies
Other Part Numbers	4161-CTLF10GDF-001-ND 4161-CTLF10GDF-001
Description	LAN FILTER-10 GIGABIT ETHERNET
Detailed Description	120µH LAN 10G Base-T Pulse Transformer 1:1CT Surface Mount
Datasheet	Datasheet

Product Attributes

Category		Transformers Pulse Transformers
Manufacturer		Central Technologies
Series		CTLF10GDF
Packaging		Tape & Reel (TR)
Part Status		Active
Inductance		120µH
Size / Dimension		1.095" L x 0.480" W (27.81mm x 12.19mm)
Mounting Type		Surface Mount
Operating Temperature		0°C ~ 70°C
Transformer Type		LAN 10G Base-T
Turns Ratio - Primary:Secondary		1:1CT
Height - Seated (Max)		0.285" (7.24mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CTLF10GDF-001

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		Vendor Undefined
REACH Status		REACH info available upon request
RoHS Status		ROHS3 Compliant
