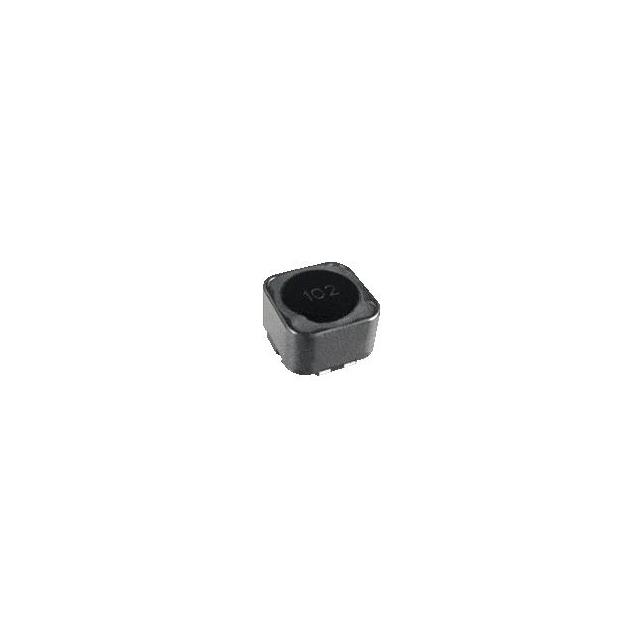

CTDRQ127F-470M _ Arrays, Signal Transformers_Inductors, Coils, Chokes

Part Number	CTDRQ127F-470M
Manufacturer	Central Technologies
Other Part Numbers	4161-CTDRQ127F-470M-ND 4161-CTDRQ127F-470M
Description	INDUCT ARRAY 2 COIL 47UH SMD
Detailed Description	Shielded 2 Coil Inductor Array 188.2 µH Inductance - Connected in Series 47 µH Inductance - Connected in Parallel 89.8mOhm Max DC Resistance (DCR) - Parallel 2.95 A Nonstandard, 4 Lead
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Arrays, Signal Transformers
Manufacturer		Central Technologies
Series		CTDRQ127F
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±20%
Package / Case		Nonstandard, 4 Lead
Size / Dimension		0.492" L x 0.492" W (12.50mm x 12.50mm)
Mounting Type		Surface Mount
Shielding		Shielded
Operating Temperature		-40°C ~ 125°C
Height		0.315" (8.00mm)
Number of Coils		2
Inductance - Connected In Series		188.2 µH
Inductance - Connected In Parallel		47 µH
Current Rating - Parallel		2.95 A
Current Rating - Series		1.47 A
Current Saturation - Parallel		5.28 A
Current Saturation - Series		2.64 A
DC Resistance (DCR) - Parallel		89.8mOhm Max
DC Resistance (DCR) - Series		353mOhm Max

RESOURCE TYPE		LINK
Datasheets		CTDRQ127F-470M

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		Vendor Undefined
REACH Status		REACH info available upon request
RoHS Status		ROHS3 Compliant
