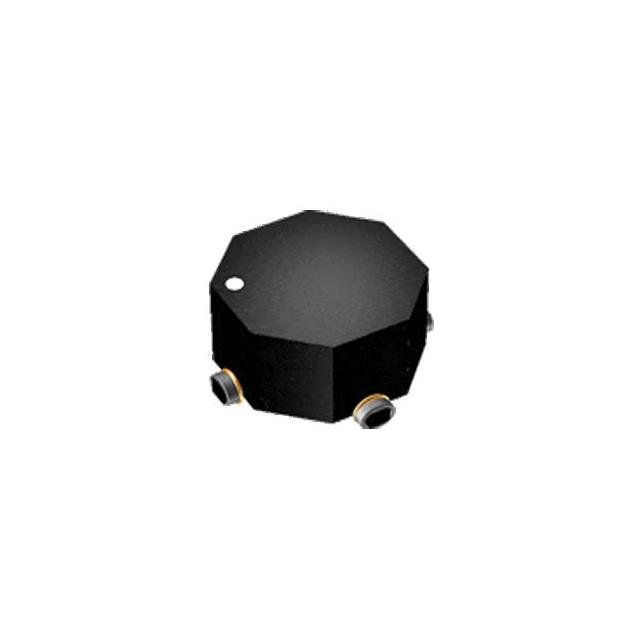

CTCTXF1-4P

CTCTXF1-4P

Part Number	CTCTXF1-4P
Manufacturer	Central Technologies
Other Part Numbers	4161-CTCTXF1-4P-ND 4161-CTCTXF1-4P
Description	1.10 UH 20% SMD TOROID CMC
Detailed Description	Unshielded 2 Coil Inductor Array 4.39 µH Inductance - Connected in Series 1.1 µH Inductance - Connected in Parallel 8mOhm Max DC Resistance (DCR) - Parallel 5.9 A Nonstandard, 4 Lead
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Arrays, Signal Transformers
Manufacturer		Central Technologies
Series		CTCTXF-4P
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±20%
Package / Case		Nonstandard, 4 Lead
Size / Dimension		0.547" L x 0.547" W (13.90mm x 13.90mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Operating Temperature		-40°C ~ 85°C
Height		0.272" (6.90mm)
Number of Coils		2
Inductance - Connected In Series		4.39 µH
Inductance - Connected In Parallel		1.1 µH
Current Rating - Parallel		5.9 A
Current Rating - Series		2.95 A
DC Resistance (DCR) - Parallel		8mOhm Max
DC Resistance (DCR) - Series		33mOhm Max

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CTCTXF1-4P

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		Vendor Undefined
REACH Status		REACH info available upon request
RoHS Status		ROHS3 Compliant
