CT10-1040-G4 _ Magnetic, Reed Switches_Switches

Part Number	CT10-1040-G4
Manufacturer	Coto Technology
Other Part Numbers	CT10-1040-G4-ND
Description	SWITCH REED SPST-NO 500MA 140V

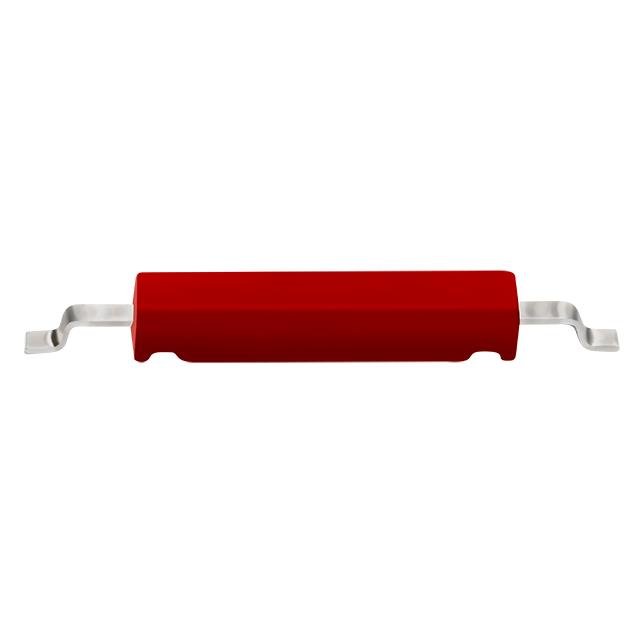

Detailed Description	Molded Body Reed Switch SPST-NO 10 ~ 40AT Operate Range 10W 500mA (AC/DC) 140 V Surface Mount

Category		Switches Magnetic, Reed Switches
Manufacturer		Coto Technology
Series		CT10
Packaging		Tape & Reel (TR)
Part Status		Obsolete
Mounting Type		Surface Mount
Circuit		SPST-NO
Type		Molded Body Reed
Operating Temperature		-40°C ~ 125°C
Termination Style		Gull Wing
Length - Overall		0.770" (19.56mm)
Power - Rated		10W
Height Above Board		0.100" (2.54mm)
Current - Switching		500mA (AC/DC)
Voltage - Switching DC		200 V
Size - Body		0.505" L x 0.090" W x 0.095" H (12.83mm x 2.29mm x 2.41mm)
Operate Range		10 ~ 40AT
Release Range		3 ~ 35AT
Current - Carry		500mA (DC)
Voltage - Switching AC		140 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9065
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
