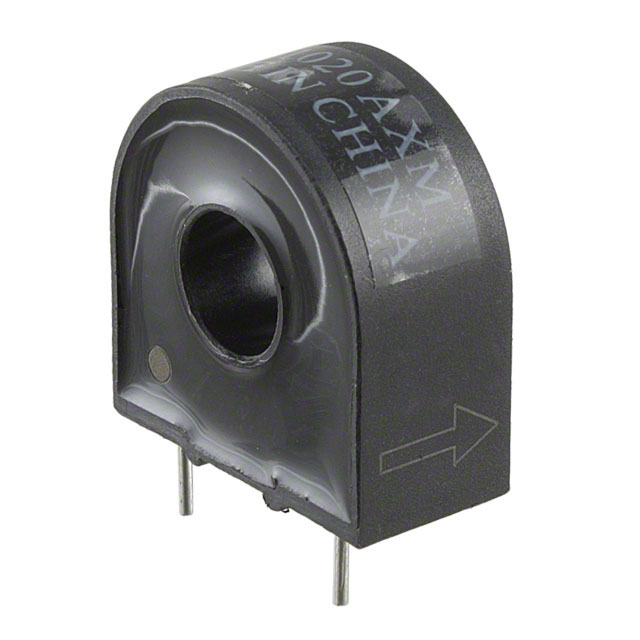

CST-1020

CST-1020

Part Number	CST-1020
Manufacturer	Triad Magnetics
Other Part Numbers	237-1620-ND 237-1620
Description	CURR SENSE XFMR 20A T/H
Detailed Description	20 A Current Sense Transformer 50/60Hz 40Ohm Through Hole
Manufacturer Standard Lead Time	23 weeks

Product Attributes

Category		Transformers Current Sense Transformers
Manufacturer		Triad Magnetics
Series		CST
Packaging		Bulk
Part Status		Active
Size / Dimension		0.925" L x 0.472" W (23.50mm x 12.00mm)
Mounting Type		Through Hole
Type		Non-Invasive (Solid Core)
Termination Style		PC Pin
DC Resistance (DCR)		40Ohm
Frequency Range		50/60Hz
Height - Seated (Max)		0.976" (24.80mm)
Current Ratio		1000:1
Current Rating (Amps)		20 A

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3792

Can ship immediately.
