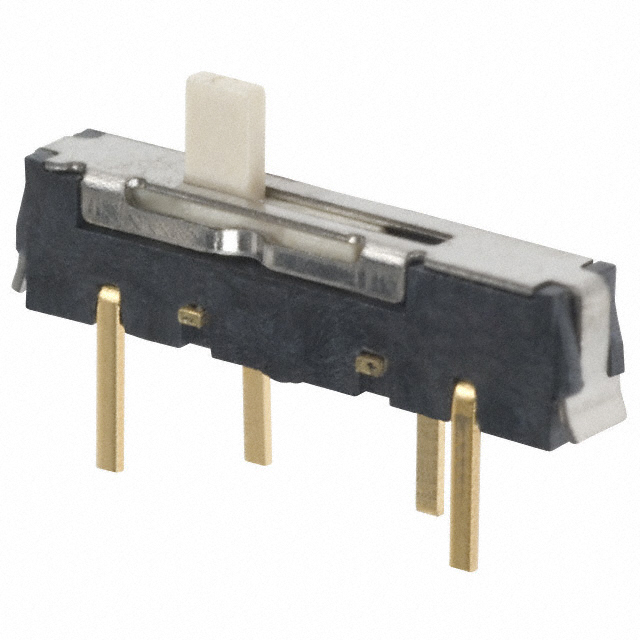

CSS-1300MC

Part Number
CSS-1300MC
Manufacturer Nidec Copal Electronics (Nidec Components)
Other Part Numbers
563-1100-ND
CSS1300MC
563-1100
Description SWITCH SLIDE SP3T 100MA 12V
Detailed Description Slide Switch SP3T Through Hole
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Nidec Copal Electronics (Nidec Components)
Series
CSS
Packaging
Tube
Part Status Active
Contact Finish Gold
Current Rating (Amps) 100mA (DC)
Mounting Type Through Hole
Circuit SP3T
Switch Function On-On-On
Operating Temperature -20°C ~ 70°C
Termination Style PC Pin
Actuator Length 2.00mm
Actuator Type Standard
Contact Material Copper Alloy
Contact Timing Non-Shorting (BBM)
Voltage Rating - DC 12 V

Documents & Media

RESOURCE TYPE LINK
Datasheets CSS-1300MC
Datasheets CSS-1300MC Top

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.50.9050
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 1085

Can ship immediately.
