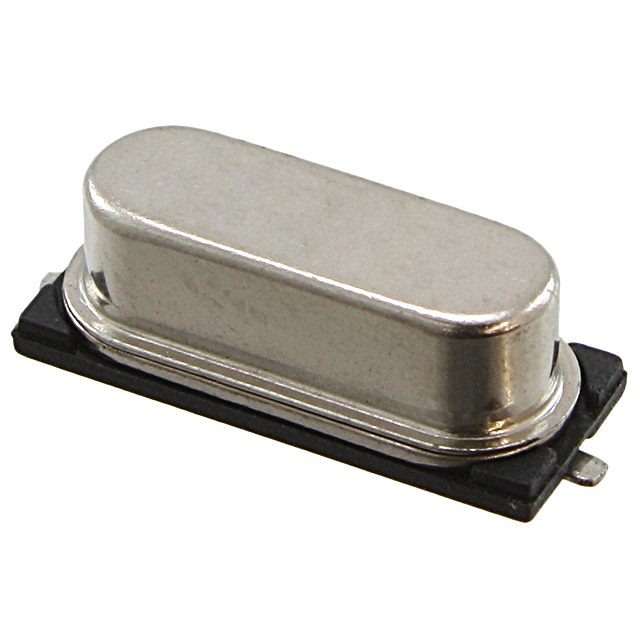

CSM1Z-A5B2C3-40-14.31818D18

CSM1Z-A5B2C3-40-14.31818D18

Part Number	CSM1Z-A5B2C3-40-14.31818D18
Manufacturer	Cardinal Components
Other Part Numbers	370-1110-2-ND 370-1110-1-ND 370-1110-6-ND 370-1110-6 370-1110-2 370-1110-1 CSM1ZA5B2C34014.31818D18
Description	CRYSTAL 14.31818MHZ 18PF SMD
Detailed Description	14.31818 MHz ±30ppm Crystal 18pF 40 Ohms HC-49S
Manufacturer Standard Lead Time	13 weeks

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Cardinal Components
Series		CSM1
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		HC-49S
Load Capacitance		18pF
Size / Dimension		0.449" L x 0.185" W (11.40mm x 4.70mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-20°C ~ 70°C
Frequency Stability		±50ppm
Frequency Tolerance		±30ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.169" (4.30mm)
ESR (Equivalent Series Resistance)		40 Ohms
Frequency		14.31818 MHz

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 821

Can ship immediately.
