Part Number	CSE5-100701
Manufacturer	Triad Magnetics
Other Part Numbers	237-2090-2-ND 237-2090-1-ND 237-2090-6-ND 237-2090-6 237-2090-1 237-2090-2 237-2090 237-2090-ND CSE5-100701-REEL

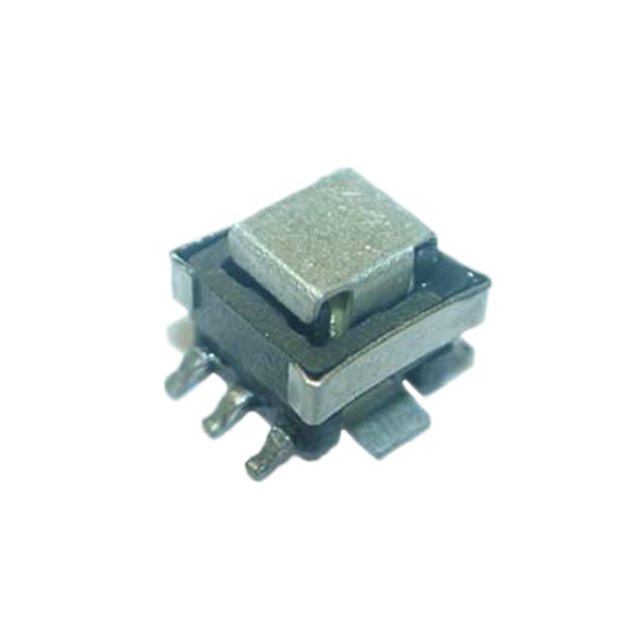

Description	CURR SENSE XFMR 1:70 10A SMD
Detailed Description	10 A 1:70 Current Sense Transformer 250kHz Min 4.75Ohm Secondary 980 µH Surface Mount
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Current Sense Transformers
Manufacturer		Triad Magnetics
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Size / Dimension		0.272" L x 0.303" W (6.90mm x 7.70mm)
Mounting Type		Surface Mount
Type		Invasive
Termination Style		Gull Wing
DC Resistance (DCR)		4.75Ohm Secondary
Turns Ratio - Primary:Secondary		1:70
Frequency Range		250kHz Min
Height - Seated (Max)		0.210" (5.33mm)
Inductance		980 µH
Current Rating (Amps)		10 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CSE5-100701
Datasheets		Standard Part Warranty Terms
Datasheets		RoHS Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
