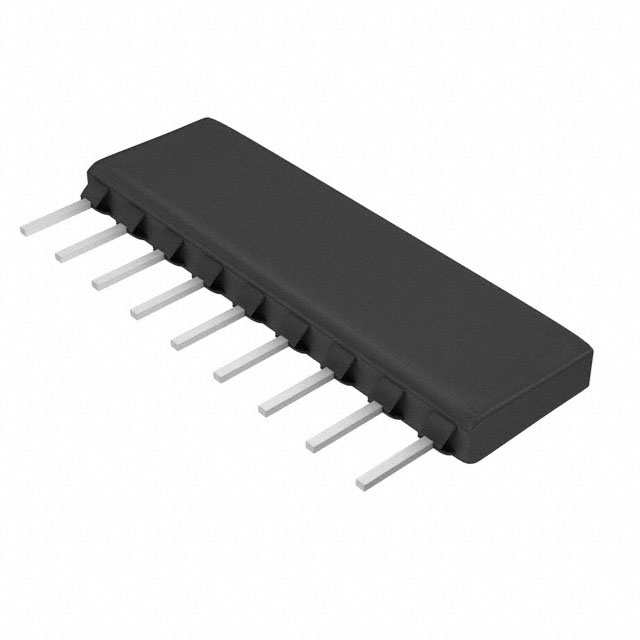

CSC09A01330RGEK

CSC09A01330RGEK

Part Number	CSC09A01330RGEK
Manufacturer	Vishay / Dale
Other Part Numbers	CSC330W-ND CSC330W
Description	RES ARRAY 8 RES 330 OHM 9SIP
Detailed Description	330 Ohm ±2% 200mW Power Per Element Bussed 8 Resistor Network/Array ±100ppm/°C 9-SIP
Manufacturer Standard Lead Time	40 weeks

Product Attributes

Category		Resistors Resistor Networks, Arrays
Manufacturer		Vishay / Dale
Series		CSC
Packaging		Bulk
Part Status		Active
Resistance (Ohms)		330
Tolerance		±2%
Power Per Element		200mW
Circuit Type		Bussed
Number of Pins		9
Package / Case		9-SIP
Temperature Coefficient		±100ppm/°C
Size / Dimension		0.890" L x 0.098" W (22.61mm x 2.49mm)
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 125°C
Supplier Device Package		9-SIP
Height - Seated (Max)		0.195" (4.95mm)
Resistor-Ratio-Drift		±50ppm/°C
Number of Resistors		8

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CSC09A01330RGEK
Datasheets		Multiple Devices Location/Coating Color 28/Feb/2020

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 690

Can ship immediately.
