CS5513-BS _ Analog to Digital Converters (ADC)_Data Acquisition_Integrated Circuits (ICs)

Part Number	CS5513-BS
Manufacturer	Cirrus Logic
Other Part Numbers	2156-CS5513-BS-ND CIRCIRCS5513-BS 2156-CS5513-BS
Description	20-BIT DELTA SIGMA ADC
Detailed Description	20 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta 8-SOIC

Category		Integrated Circuits (ICs) Data Acquisition Analog to Digital Converters (ADC)
Manufacturer		Cirrus Logic
Series
Packaging		Bulk
Part Status		Active

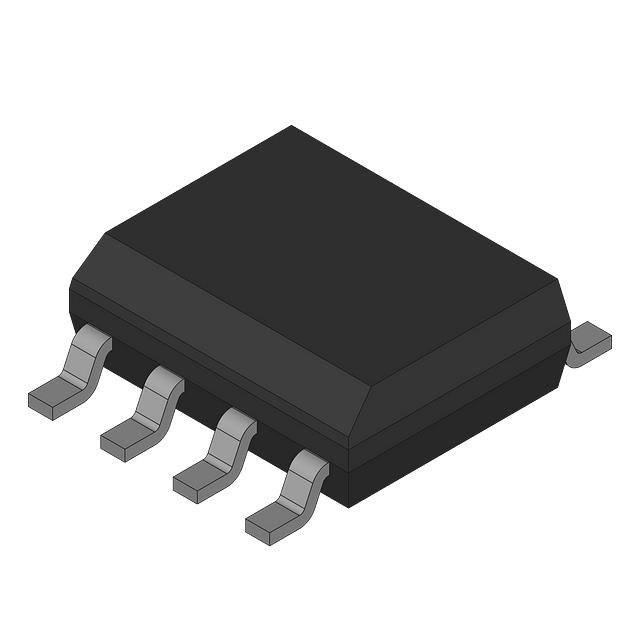

Package / Case		8-SOIC (0.209", 5.30mm Width)
Mounting Type		Surface Mount
Number of Bits		20
Configuration		S/H-ADC
Data Interface		Serial
Reference Type		External
Operating Temperature		-40°C ~ 85°C
Voltage - Supply, Analog		4.75V ~ 5.25V
Voltage - Supply, Digital		4.75V ~ 5.25V
Sampling Rate (Per Second)		53.5
Input Type		Differential
Number of Inputs		1
Supplier Device Package		8-SOIC
Architecture		Sigma-Delta
Ratio - S/H:ADC		2:1
Number of A/D Converters		1

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		2 (1 Year)
REACH Status		Vendor Undefined
RoHS Status		RoHS non-compliant
