CS4272-CZZ

Part Number
CS4272-CZZ
Manufacturer Cirrus Logic
Other Part Numbers
598-CS4272-CZZ-ND
-598-1042-5
CS4272CZZ
-840-CS4272-CZZ
598-1042-5
598-1042-5-ND
598-CS4272-CZZ
-598-1042-5-ND
Description IC CODEC AUD 24BIT 114DB 28TSSOP
Detailed Description Stereo Audio Interface 24 b PCM 28-TSSOP
Datasheet Datasheet

Product Attributes

Category
Manufacturer Cirrus Logic
Series
Packaging
Tube
Part Status Obsolete

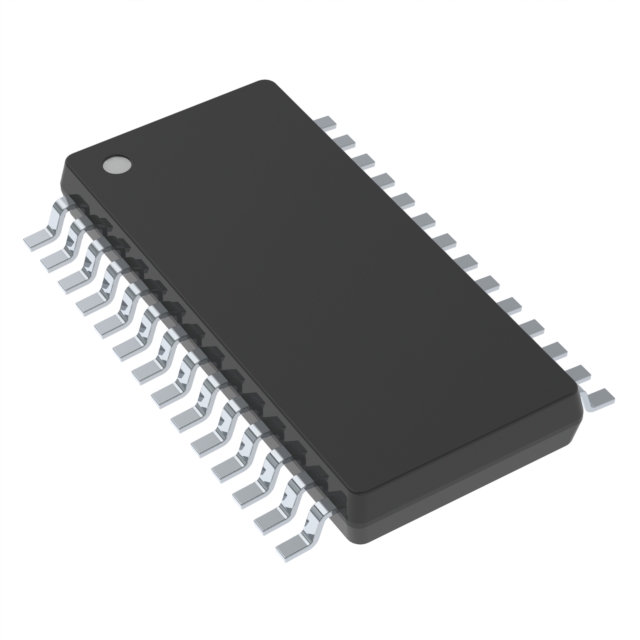

Package / Case 28-TSSOP (0.173", 4.40mm Width)
Mounting Type Surface Mount
Type Stereo Audio
Data Interface PCM
Operating Temperature -10°C ~ 70°C
Voltage - Supply, Analog 4.75V ~ 5.25V
Voltage - Supply, Digital 3.1V ~ 5.25V
Resolution (Bits) 24 b
Dynamic Range, ADCs / DACs (db) Typ 114 / 114
Number of ADCs / DACs 2 / 2
Sigma Delta Yes
Supplier Device Package 28-TSSOP

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
