CS19-08HO1S-TUB

CS19-08HO1S-TUB

Part Number	CS19-08HO1S-TUB
Manufacturer	Littelfuse / IXYS RF
Other Part Numbers	CS19-08HO1S-TUB-ND CS19-08HO1S-TUBE-ND CS19-08HO1S-TUBE
Description	SCR 800V 31A TO263
Detailed Description	SCR 800 V 31 A Standard Recovery Surface Mount TO-263 (D2PAK)
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Thyristors SCRs
Manufacturer		Littelfuse / IXYS RF
Series
Packaging		Tube
Part Status		Active

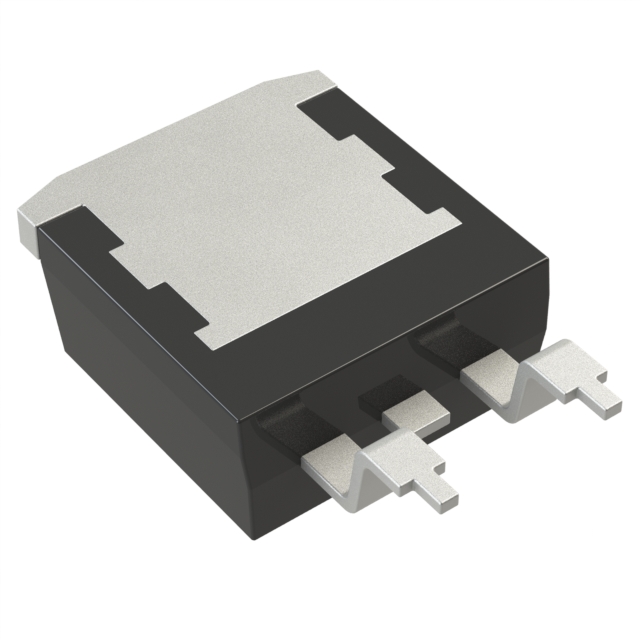

Package / Case		TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type		Surface Mount
SCR Type		Standard Recovery
Operating Temperature		-40°C ~ 125°C (TJ)
Current - Hold (Ih) (Max)		50 mA
Current - Gate Trigger (Igt) (Max)		28 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)		180A, 195A
Current - On State (It (AV)) (Max)		20 A
Voltage - Gate Trigger (Vgt) (Max)		1.5 V
Voltage - On State (Vtm) (Max)		1.32 V
Current - Off State (Max)		50 µA
Supplier Device Package		TO-263 (D2PAK)
Current - On State (It (RMS)) (Max)		31 A
Voltage - Off State		800 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CS19-08HO1S-TUB
Datasheets		Mult Packaging Changes 17/Aug/2023

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8541.30.0080
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1412

Can ship immediately.
