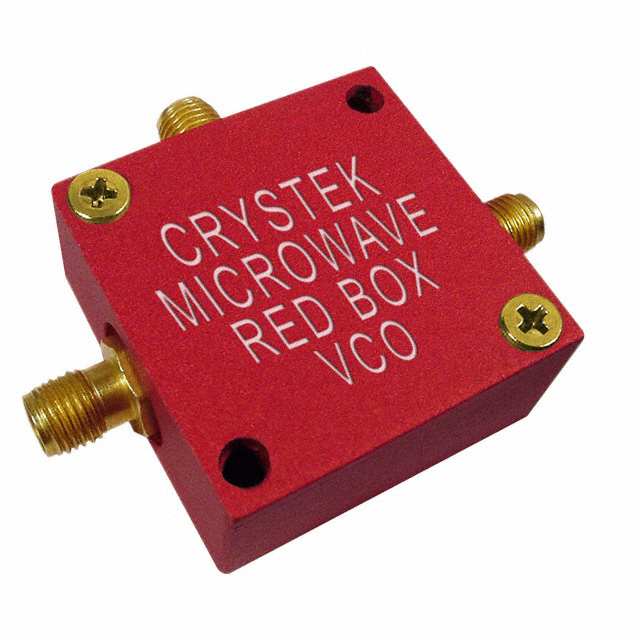

CRBV55BH-4100-4300

CRBV55BH-4100-4300

Part Number	CRBV55BH-4100-4300
Manufacturer	Crystek Corporation
Other Part Numbers	CRBV55BH-4100-4300-ND Q4422914
Description	VCO 4200MHZ 0.5-4.5V 31.75X14.99
Detailed Description	4200MHz Center Frequency 0.5 V ~ 4.5 V Voltage Controlled Oscillator 2 ±2 dBm -15 2nd Harmonic Typ (dBc)
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators VCOs (Voltage Controlled Oscillators)
Manufacturer		Crystek Corporation
Series		CRBV55, RedBox
Packaging		Tray
Part Status		Active
Package / Case		Module Adapter, SMA F (3)
Size / Dimension		1.250" L x 0.590" W (31.75mm x 14.99mm)
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		5V
Height		1.250" (31.75mm)
Frequency Range		4100 ~ 4300MHz
2nd Harmonic, Typ (dBc)		-15
Frequency - Center		4200MHz
Icc Max		15mA
Pushing (MHz/V)		6
Phase Noise Typ (dBc/Hz)		-84
Power (dBm)		2 ±2
Tuning Voltage (VDC)		0.5 V ~ 4.5 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CRBV55BH-4100-4300

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
