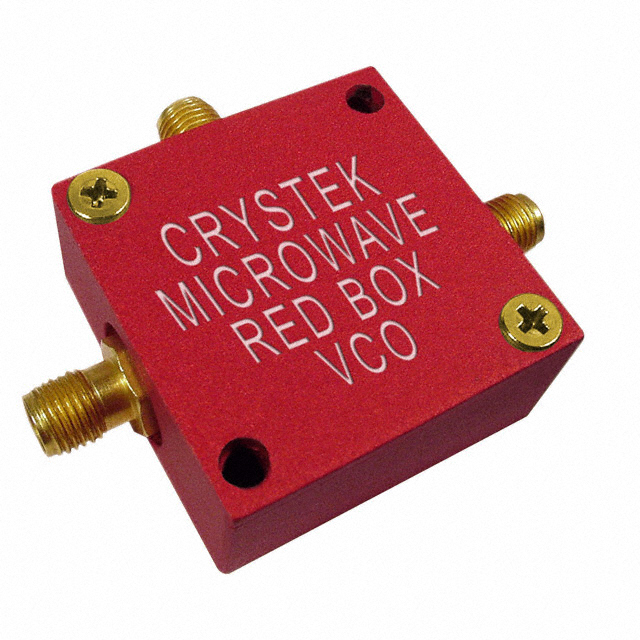

CRBV55BE-2560-2920

CRBV55BE-2560-2920

Part Number	CRBV55BE-2560-2920
Manufacturer	Crystek Corporation
Other Part Numbers	CRBV55BE-2560-2920-ND
Description	VCO 2740MHZ 0-18V 31.75X14.99MM
Detailed Description	2740MHz Center Frequency 0 V ~ 18 V Voltage Controlled Oscillator 0 ±3 dBm -10 2nd Harmonic Typ (dBc)
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators VCOs (Voltage Controlled Oscillators)
Manufacturer		Crystek Corporation
Series		CRBV55, RedBox
Packaging		Tray
Part Status		Active
Package / Case		Module Adapter, SMA F (3)
Size / Dimension		1.250" L x 0.590" W (31.75mm x 14.99mm)
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		8V
Height		1.250" (31.75mm)
Frequency Range		2560 ~ 2920MHz
2nd Harmonic, Typ (dBc)		-10
Frequency - Center		2740MHz
Icc Max		35mA
Pushing (MHz/V)		0.5
Phase Noise Typ (dBc/Hz)		-102
Power (dBm)		0 ±3
Tuning Voltage (VDC)		0 V ~ 18 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CRBV55BE-2560-2920

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
