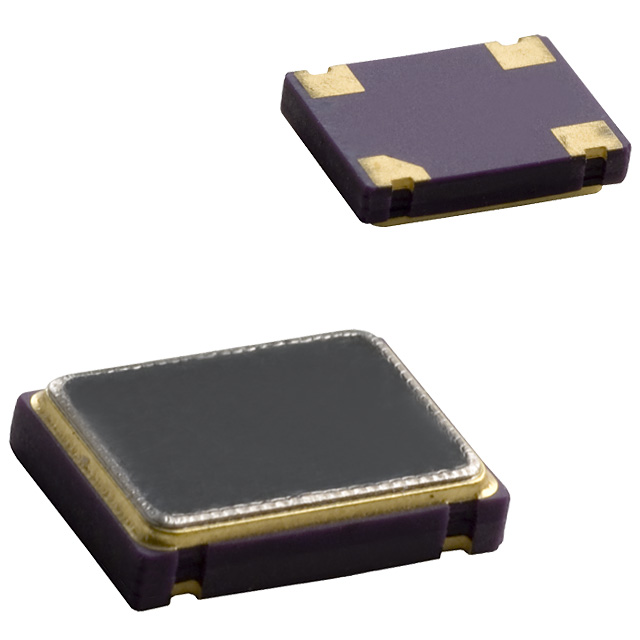

CPPT7-HZ76P

Part Number
CPPT7-HZ76P
Manufacturer Cardinal Components
Other Part Numbers
CPPT7-HZ76P-ND
Description OSC PROG TTL 5V 100PPM STBY
Detailed Description XO (Standard) TTL 1 MHz ~ 133 MHz Programmable Oscillator 5V Standby 4-SMD, No Lead
Datasheet Datasheet

Product Attributes

Category
Manufacturer Cardinal Components
Series
FIPO™ CPP
Packaging
Strip
Part Status Active
Package / Case 4-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Mounting Type Surface Mount
Output TTL
Function Standby
Programmable Type Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Type XO (Standard)
Operating Temperature -40°C ~ 85°C
Frequency Stability ±100ppm
Voltage - Supply 5V
Current - Supply (Max) 45mA
Height - Seated (Max) 0.075" (1.90mm)
Available Frequency Range 1 MHz ~ 133 MHz
Base Resonator Crystal

Documents & Media

RESOURCE TYPE LINK
Datasheets CPPT7-HZ76P

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
REACH Status REACH Unaffected
RoHS Status RoHS Compliant
