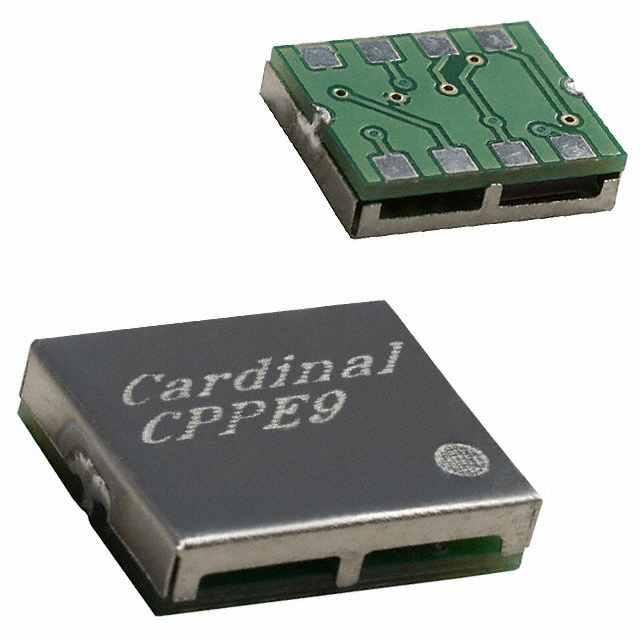

CPPE9

Part Number
CPPE9
Manufacturer Cardinal Components
Other Part Numbers
CPPE9TB6-ND
CPPE9TB6
Description XTAL OSC PROG XO PECL 5V 100PPM
Detailed Description XO (Standard) PECL 1 MHz ~ 133 MHz Programmable Oscillator 5V Enable/Disable 8-SMD, No Lead
Datasheet Datasheet

Product Attributes

Category
Manufacturer Cardinal Components
Series
FIPO™ CPPE9
Packaging
Tube
Part Status Obsolete
Package / Case 8-SMD, No Lead
Size / Dimension 0.449" L x 0.378" W (11.40mm x 9.60mm)
Mounting Type Surface Mount
Output PECL
Function Enable/Disable
Programmable Type Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Type XO (Standard)
Operating Temperature 0°C ~ 70°C
Frequency Stability ±100ppm
Voltage - Supply 5V
Height - Seated (Max) 0.118" (3.00mm)
Available Frequency Range 1 MHz ~ 133 MHz
Base Resonator Crystal

Documents & Media

RESOURCE TYPE LINK
Datasheets CPPE9

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
