CPMCTNC17 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	CPMCTNC17
Manufacturer	Cinch Connectivity Solutions AIM-Cambridge
Other Part Numbers	116-CPMCTNC17-ND 367-1058 CPMC-TNC-17 367-0058-ND 367-0058 367-1058-ND 012446238114 116-CPMCTNC17
Description	CONN TNC PLUG STR 50 OHM CRIMP
Detailed Description	TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
Manufacturer Standard Lead Time	21 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Cinch Connectivity Solutions AIM-Cambridge
Series
Packaging		Bulk
Part Status		Active
Connector Type		Plug, Male Pin
Contact Termination		Crimp or Solder
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line)
Cable Group		RG-8X
Operating Temperature		-55°C ~ 85°C
Fastening Type		Threaded

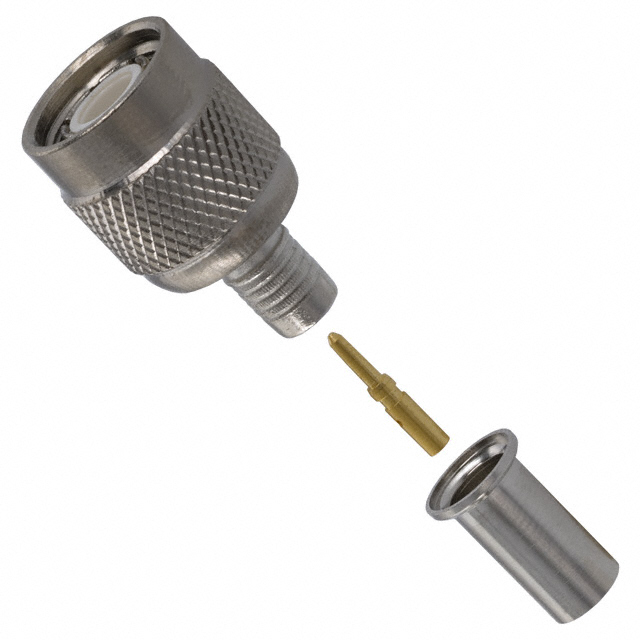

Includes		3 pcs - 1 Connector, 1 Contact, 1 Sleeve
Connector Style		TNC
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Zinc
Housing Color		Silver
Mating Cycles		500
Shield Termination		Crimp
Center Contact Material		Brass
Body Finish		Nickel
Center Contact Plating		Gold
Frequency - Max		11 GHz
Number of Ports		1
Voltage Rating		500 V

RESOURCE TYPE		LINK
Datasheets		CPMCTNC17

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
