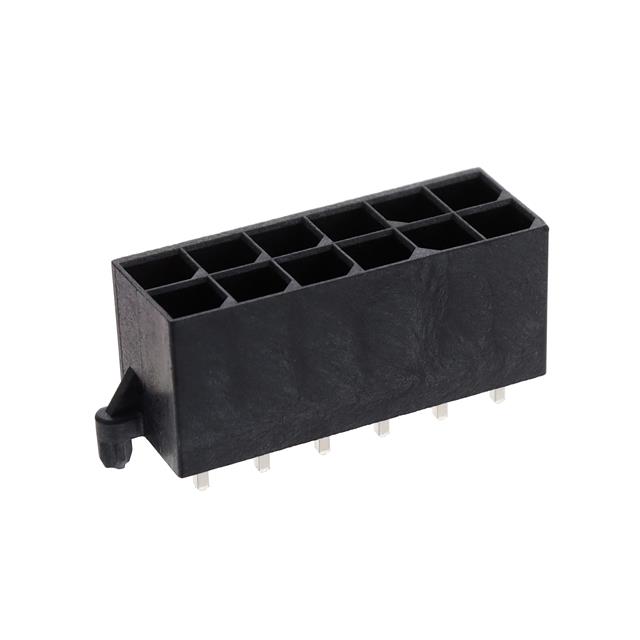

CP6012P1V00-NH _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	CP6012P1V00-NH
Manufacturer	CviLux
Other Part Numbers	2987-CP6012P1V00-NH-ND 2987-CP6012P1V00-NH
Description	VERT HEADER 5.70MM 12 POS
Detailed Description	Connector Header Through Hole 12 position 0.224" (5.70mm)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		CviLux
Series		CP60
Packaging		Tray
Part Status		Active
Features		Board Guide
Connector Type		Header
Voltage Rating		600VAC
Current Rating (Amps)		23A
Mounting Type		Through Hole
Number of Positions		12
Number of Rows		2
Style		Board to Cable/Wire
Operating Temperature		-40°C ~ 105°C
Contact Type		Male Pin
Fastening Type		Locking Ramp
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.224" (5.70mm)
Contact Finish - Mating		Tin
Contact Finish - Post		Tin
Contact Shape		Square
Contact Length - Post		0.147" (3.73mm)
Insulation Height		0.583" (14.81mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Liquid Crystal Polymer (LCP), Halogen Free
Row Spacing - Mating		0.224" (5.70mm)

RESOURCE TYPE		LINK
Datasheets		CP6012P1V00-NH

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
