Part Number	CONSMA019-G
Manufacturer	TE Connectivity Linx
Other Part Numbers	343-CONSMA019-G-ND 343-CONSMA019-G

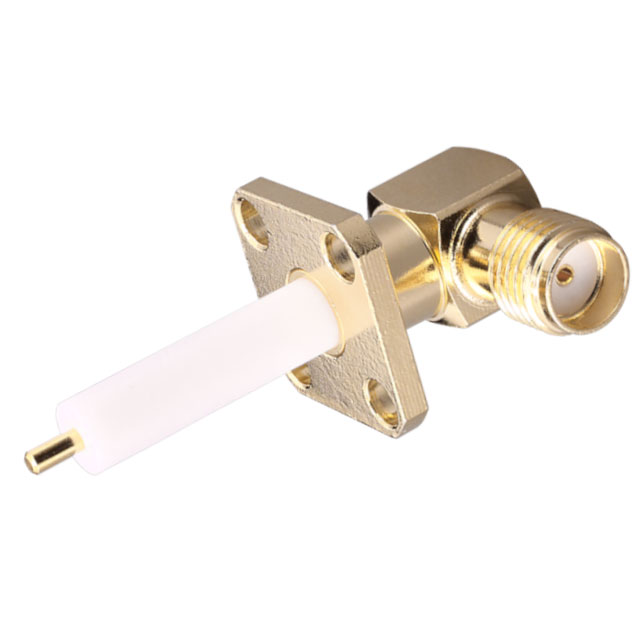

Description	SMA FML R/A 4-HOLE FLANGE, GOLD
Detailed Description	SMA Connector Jack, Female Socket 50 Ohms Panel Mount, Right Angle Solder
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		TE Connectivity Linx
Series
Packaging		Tray
Part Status		Active
Features		Extended Insulation
Connector Type		Jack, Female Socket
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Panel Mount, Right Angle
Operating Temperature		-55°C ~ 155°C
Fastening Type		Threaded
Connector Style		SMA
Dielectric Material		Polytetrafluoroethylene (PTFE)
Mounting Feature		Flange
Body Material		Brass
Housing Color		Gold
Mating Cycles		500
Shield Termination		Solder
Center Contact Material		Beryllium Copper
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		18 GHz
Number of Ports		1
Voltage Rating		1500 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
