CONSMA012-R178 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	CONSMA012-R178
Manufacturer	TE Connectivity Linx
Other Part Numbers	CONSMA012-R178-ND CONSMA012R178

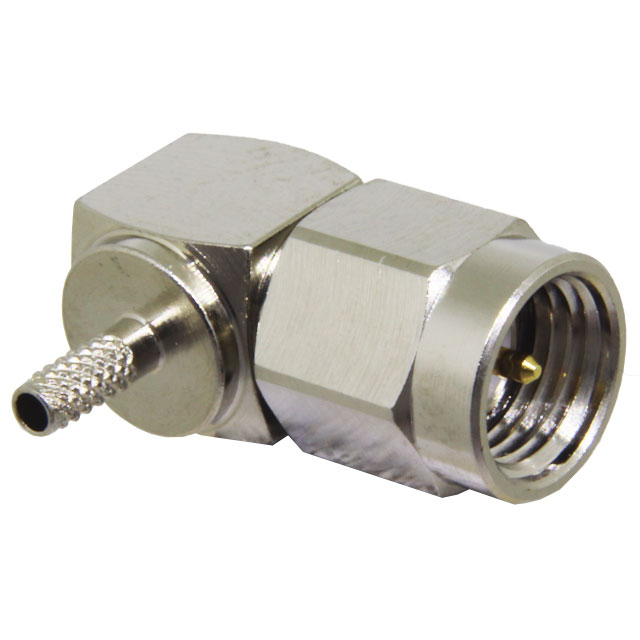

Description	CONN SMA PLUG R/A 50 OHM SOLDER
Detailed Description	SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		TE Connectivity Linx
Series
Packaging		Bag
Part Status		Active
Connector Type		Plug, Male Pin
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line), Right Angle
Cable Group		RG-178
Operating Temperature		-65°C ~ 165°C
Fastening Type		Threaded

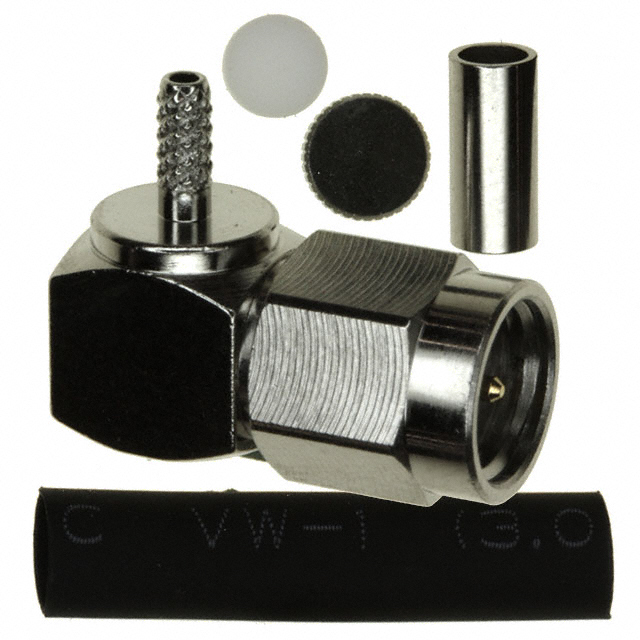

Includes		5 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Heat Shrink, 1 Insulator
Connector Style		SMA
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Brass
Housing Color		Silver
Mating Cycles		500
Shield Termination		Crimp
Center Contact Material		Brass
Body Finish		Nickel
Center Contact Plating		Gold
Frequency - Max		12.4 GHz
Number of Ports		1
Voltage Rating		250 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
