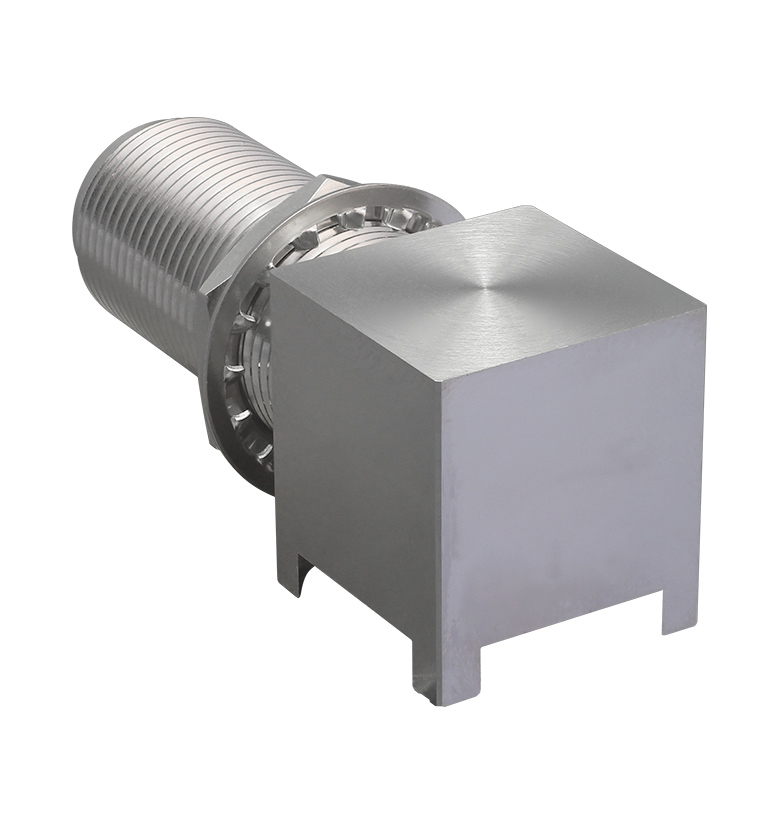

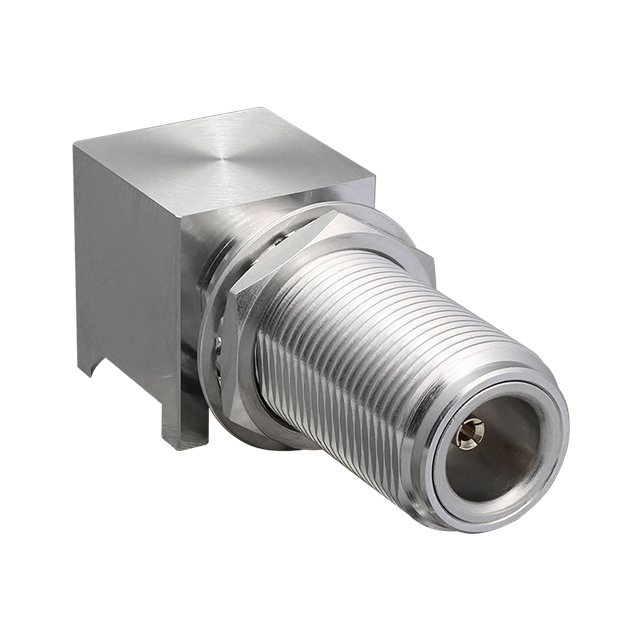

CONN013-W _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	CONN013-W
Manufacturer	TE Connectivity Linx
Other Part Numbers	343-CONN013-W-ND 343-CONN013-W
Description	CONN N JACK R/A 50 OHM PCB
Detailed Description	N Type Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		TE Connectivity Linx
Series
Packaging		Bulk
Part Status		Active
Features		Low PIM
Connector Type		Jack, Female Socket
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Panel Mount, Through Hole, Right Angle
Operating Temperature		-65°C ~ 165°C
Fastening Type		Threaded
Connector Style		N Type
Dielectric Material		Polytetrafluoroethylene (PTFE)
Mounting Feature		Bulkhead - Front Side Nut
Body Material		Brass
Housing Color		Silver
Mating Cycles		500
Shield Termination		Solder
Center Contact Material		Beryllium Copper
Body Finish		White Bronze
Center Contact Plating		Gold
Frequency - Max		11 GHz
Number of Ports		1
Voltage Rating		2.5 kV

RESOURCE TYPE		LINK
Datasheets		CONN013-W

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
