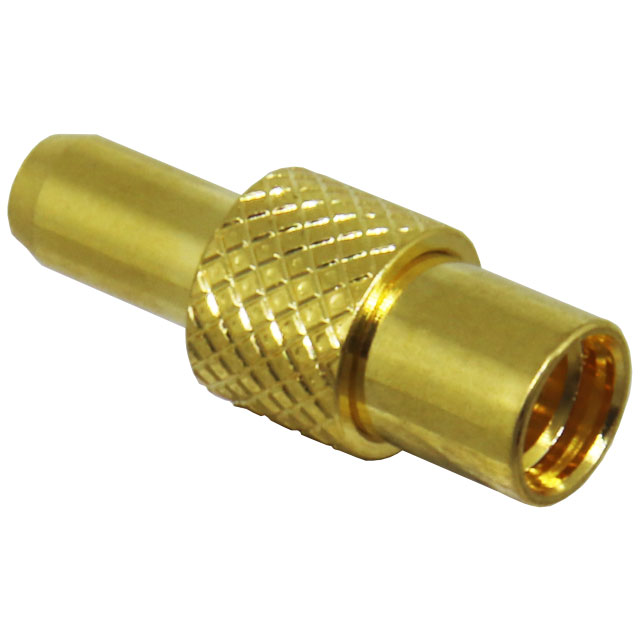

CONMMCX011-R178 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	CONMMCX011-R178
Manufacturer	TE Connectivity Linx
Other Part Numbers	CONMMCX011-R178-ND CONMMCX011-178 CONMMCX011R178 CONMMCX011-178-ND
Description	CONN MMCX RCPT STR 50 OHM CRIMP
Detailed Description	MMCX Connector Receptacle, Female Socket 50 Ohms Free Hanging (In-Line) Crimp or Solder
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		TE Connectivity Linx
Series
Packaging		Bag
Part Status		Active
Connector Type		Receptacle, Female Socket
Contact Termination		Crimp or Solder
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line)
Cable Group		RG-178
Operating Temperature		-65°C ~ 165°C
Insertion Loss		0.2dB
Fastening Type		Snap-On
Includes		5 pcs - 1 Connector, 1 Contact, 1 Heat Shrink, 1 Spacer, 1 Support
Connector Style		MMCX
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Brass
Housing Color		Gold
Mating Cycles		500
Shield Termination		Crimp
Center Contact Material		Beryllium Copper
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		6 GHz
Number of Ports		1
Voltage Rating		170 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
