CONMCX012 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	CONMCX012
Manufacturer	TE Connectivity Linx
Other Part Numbers	CONMCX012-ND
Description	CONN MCX PLUG R/A 50 OHM SOLDER
Detailed Description	MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		TE Connectivity Linx
Series
Packaging		Bulk
Part Status		Active
Connector Type		Plug, Male Pin
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line), Right Angle
Cable Group		RG-174
Operating Temperature		-65°C ~ 165°C
Insertion Loss		0.2dB
Fastening Type		Snap-On

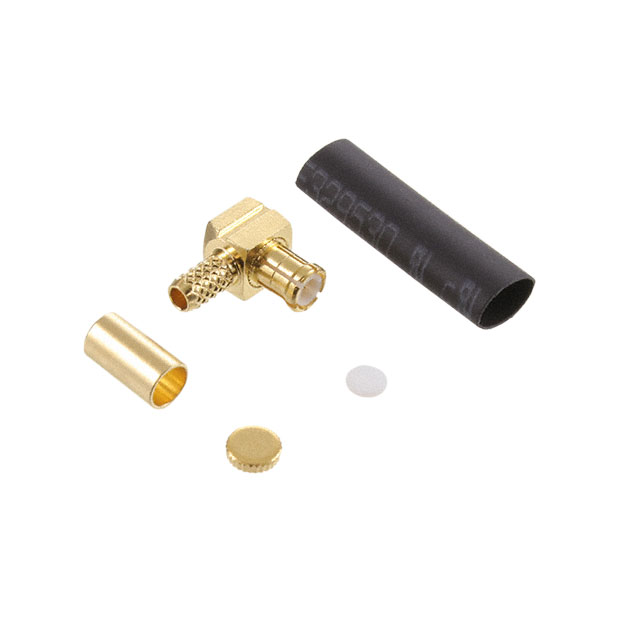

Includes		5 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Heat Shrink, 1 Insulator
Connector Style		MCX
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Brass
Housing Color		Gold
Mating Cycles		500
Shield Termination		Crimp
Center Contact Material		Brass
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		6 GHz
Number of Ports		1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

Can ship immediately.
