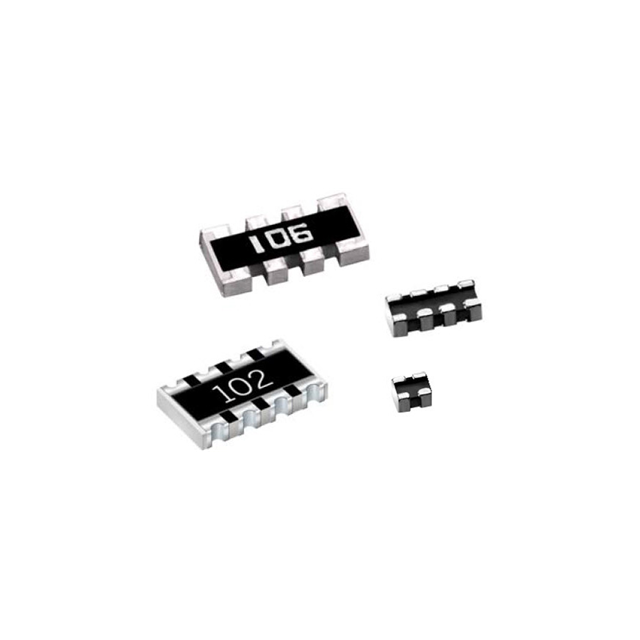

CN-21JL6---47R

CN-21JL6---47R

Part Number	CN-21JL6---47R
Manufacturer	Viking Tech
Other Part Numbers	2577-CN-21JL6---47RTR-ND 2577-CN-21JL6---47RTR
Description	RES 47R Ohm 5% 1/32W 0201*2
Detailed Description	47 Ohm ±5% 31mW Power Per Element Isolated 2 Resistor Network/Array ±200ppm/°C 0302 (0805 Metric), Convex, Long Side Terminals
Datasheet	Datasheet

Product Attributes

Category		Resistors Resistor Networks, Arrays
Manufacturer		Viking Tech
Series		CN
Packaging		Tape & Reel (TR)
Part Status		Active
Resistance (Ohms)		47
Tolerance		±5%
Power Per Element		31mW
Circuit Type		Isolated
Number of Pins		4
Package / Case		0302 (0805 Metric), Convex, Long Side Terminals
Temperature Coefficient		±200ppm/°C
Size / Dimension		0.031" L x 0.024" W (0.80mm x 0.60mm)
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 125°C
Supplier Device Package		0201
Height - Seated (Max)		0.018" (0.45mm)
Number of Resistors		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CN-21JL6---47R

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		5833.40.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
