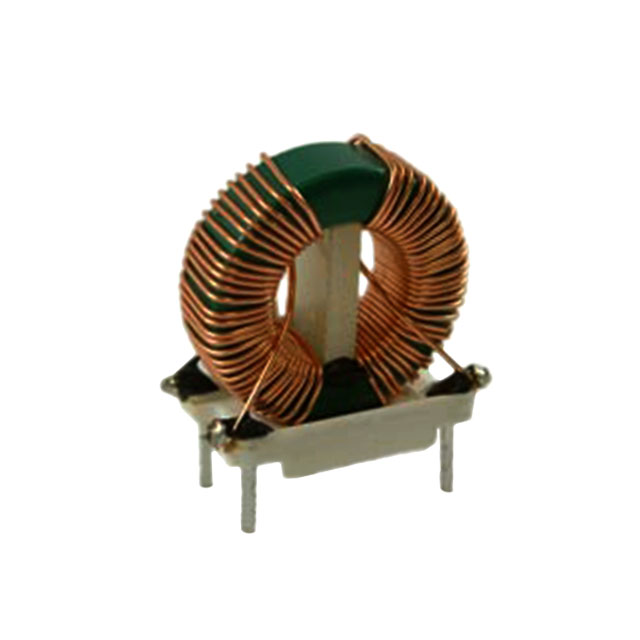

CMT-8105-B

CMT-8105-B

Part Number	CMT-8105-B
Manufacturer	Triad Magnetics
Other Part Numbers	CMT-8105-B-ND
Description	CMC 7MH 2.8A 2LN TH ESD
Detailed Description	7 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 2.8A DCR 120mOhm
Manufacturer Standard Lead Time	21 weeks

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		Triad Magnetics
Series		CMT
Packaging		Bulk
Part Status		Active
Package / Case		Vertical, 4 PC Pin
Filter Type		Power Line
Size / Dimension		1.200" L x 0.600" W (30.48mm x 15.24mm)
Mounting Type		Through Hole
Number of Lines		2
Operating Temperature		-55°C ~ 105°C
Approval Agency		CSA, IEC, UL, VDE
Height (Max)		1.200" (30.48mm)
Voltage Rating - AC		1500V (1.5kV)
Current Rating (Max)		2.8A
DC Resistance (DCR) (Max)		120mOhm
Inductance @ Frequency		7 mH @ 1 kHz

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
