CMSZ5244B BK

Part Number
CMSZ5244B BK
Manufacturer Central Semiconductor
Other Part Numbers
CMSZ5244BBK-ND
CMSZ5244BBK
CMSZ5244B BK-ND
Description DIODE ZENER 14V 275MW SOT323

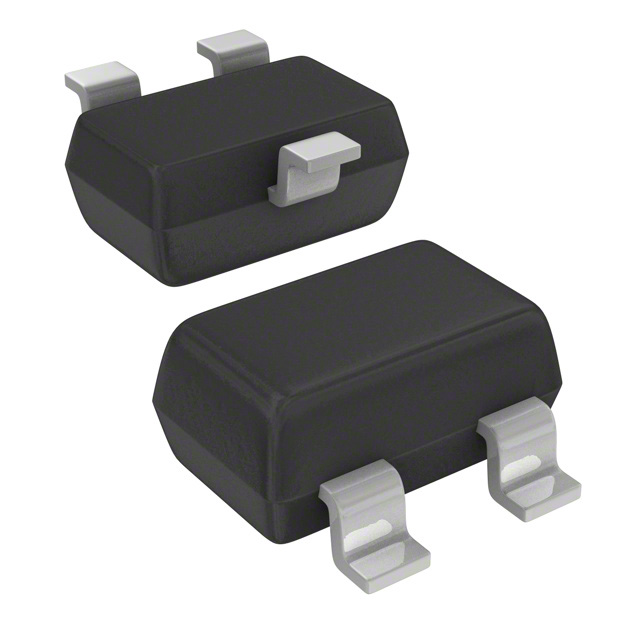

Detailed Description Zener Diode 14 V 275 mW ±5% Surface Mount SOT-323

Product Attributes

Category
Manufacturer Central Semiconductor
Series
Packaging
Bulk
Part Status Active
Tolerance ±5%
Package / Case SC-70, SOT-323
Mounting Type Surface Mount
Operating Temperature -65°C ~ 150°C
Voltage - Zener (Nom) (Vz) 14 V
Impedance (Max) (Zzt) 15 Ohms
Supplier Device Package SOT-323
Power - Max 275 mW
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Current - Reverse Leakage @ Vr 100 nA @ 10 V

Documents & Media

RESOURCE TYPE LINK
Datasheets CMSZ5244B BK
Datasheets RoHS Cert

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0050
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant
