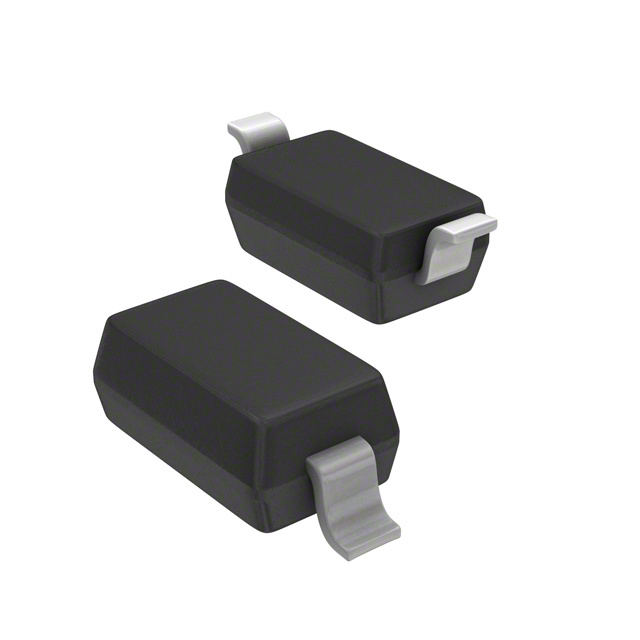

CMHZ4689 BK TIN/LEAD

Part Number
CMHZ4689 BK TIN/LEAD
Manufacturer Central Semiconductor
Other Part Numbers
1514-CMHZ4689BKTIN/LEAD-ND
1514-CMHZ4689BKTIN/LEAD
Description DIODE ZENNER 5.1V 500MW SOD-123
Detailed Description Zener Diode 5.1 V 500 mW ±5% Surface Mount SOD-123
Datasheet Datasheet

Product Attributes

Category
Manufacturer Central Semiconductor
Series
Packaging
Bulk
Part Status Active
Tolerance ±5%
Package / Case SOD-123
Mounting Type Surface Mount
Operating Temperature -65°C ~ 150°C (TJ)
Voltage - Zener (Nom) (Vz) 5.1 V
Supplier Device Package SOD-123
Power - Max 500 mW
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 100 mA
Current - Reverse Leakage @ Vr 10 µA @ 3 V

Documents & Media

RESOURCE TYPE LINK
Datasheets CMHZ4689 BK TIN/LEAD
Datasheets RoHS Cert

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0050
REACH Status REACH Unaffected
