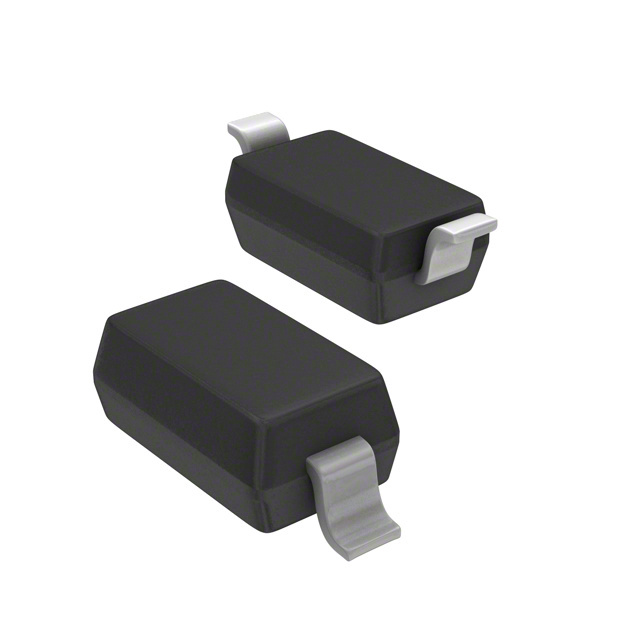

CMHZ4626 TR

CMHZ4626 TR

Part Number	CMHZ4626 TR
Manufacturer	Central Semiconductor
Other Part Numbers	1514-CMHZ4626TR-ND 1514-CMHZ4626TR
Description	DIODE ZENNER 5.6V 500MW SOD-123
Detailed Description	Zener Diode 5.6 V 500 mW ±5% Surface Mount SOD-123
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		Central Semiconductor
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±5%
Package / Case		SOD-123
Mounting Type		Surface Mount
Operating Temperature		-65°C ~ 150°C (TJ)
Voltage - Zener (Nom) (Vz)		5.6 V
Impedance (Max) (Zzt)		1400 Ohms
Supplier Device Package		SOD-123
Power - Max		500 mW
Voltage - Forward (Vf) (Max) @ If		1.5 V @ 100 mA
Current - Reverse Leakage @ Vr		10 µA @ 4 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CMHZ4626 TR
Datasheets		RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
REACH Status		REACH Unaffected
