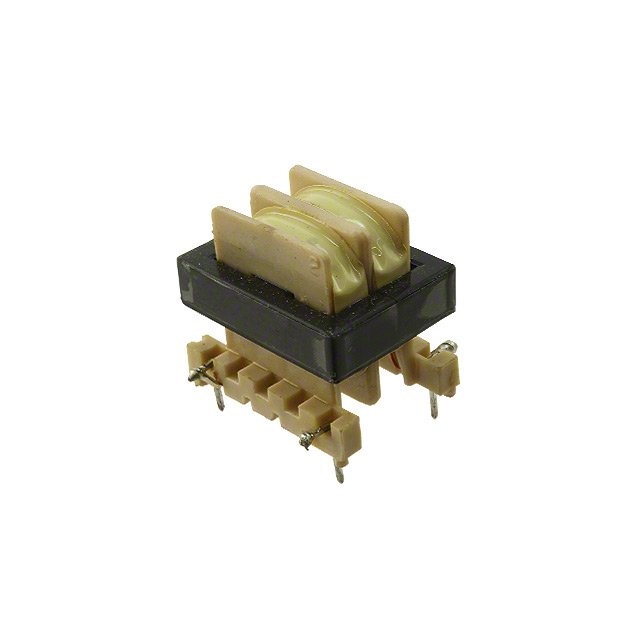

CME2425-4-B

CME2425-4-B

Part Number	CME2425-4-B
Manufacturer	Triad Magnetics
Other Part Numbers	CME2425-4-B-ND
Description	CMC 6MH 1.28A 2LN TH ESD
Detailed Description	6 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.28A DCR 202mOhm
Manufacturer Standard Lead Time	21 weeks

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		Triad Magnetics
Series		CME
Packaging		Bulk
Part Status		Active
Package / Case		Vertical, 4 PC Pin
Filter Type		Power Line
Size / Dimension		1.050" L x 1.050" W (26.67mm x 26.67mm)
Mounting Type		Through Hole
Number of Lines		2
Operating Temperature		-40°C ~ 80°C
Approval Agency		CSA, IEC, UL, VDE
Height (Max)		1.075" (27.31mm)
Voltage Rating - AC		250V
Current Rating (Max)		1.28A
DC Resistance (DCR) (Max)		202mOhm
Inductance @ Frequency		6 mH @ 10 kHz

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
