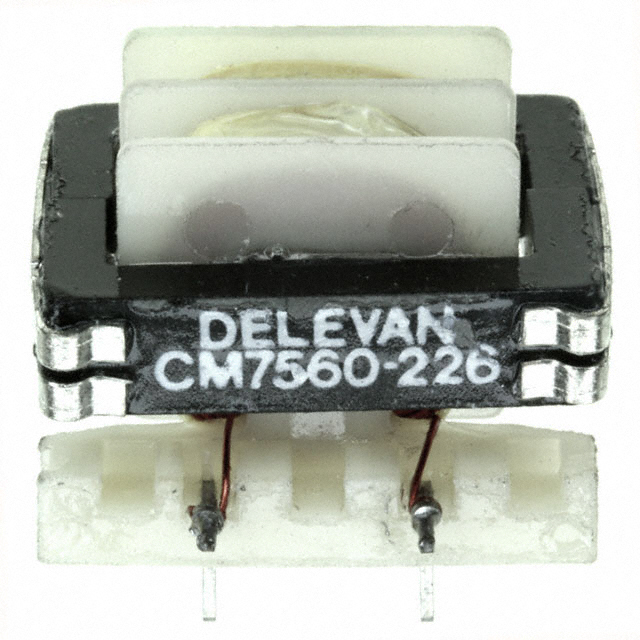

CM7560-226

CM7560-226

Part Number	CM7560-226
Manufacturer	API Delevan
Other Part Numbers	CM7560-226-ND CM7560-226 BULK 25
Description	CMC 22MH 550MA 2LN TH
Detailed Description	22 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 550mA DCR 1.5Ohm
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		API Delevan
Series		CM7560
Packaging		Bulk
Part Status		Active
Package / Case		Vertical, 4 PC Pin
Size / Dimension		1.071" L x 0.858" W (27.20mm x 21.80mm)
Mounting Type		Through Hole
Number of Lines		2
Operating Temperature		-55°C ~ 125°C
Height (Max)		0.861" (21.86mm)
Current Rating (Max)		550mA
DC Resistance (DCR) (Max)		1.5Ohm
Inductance @ Frequency		22 mH @ 1 kHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CM7560-226

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant
