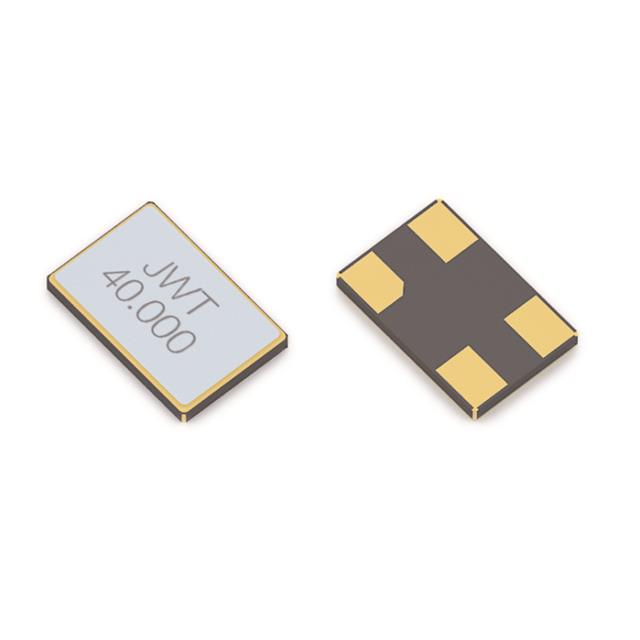

CM4024M00009T1521007

Part Number
CM4024M00009T1521007
Manufacturer Hefei Jingweite Electronics
Other Part Numbers
4538-CM4024M00009T1521007-ND
4538-CM4024M00009T1521007
Description 2520 XTAL 24M 8PF 10 20 -40/85 4
Detailed Description 24 MHz ±10ppm Crystal 8pF 60 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time 8 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Hefei Jingweite Electronics
Series
SMD 2520
Packaging
Tape & Reel (TR)
Part Status Active
Package / Case 4-SMD, No Lead
Load Capacitance 8pF
Size / Dimension 0.100" L x 0.081" W (2.55mm x 2.05mm)
Mounting Type Surface Mount
Type MHz Crystal
Operating Temperature -40°C ~ 85°C
Frequency Stability ±20ppm
Frequency Tolerance ±10ppm
Operating Mode Fundamental
Height - Seated (Max) 0.024" (0.60mm)
ESR (Equivalent Series Resistance) 60 Ohms
Frequency 24 MHz

Documents & Media

RESOURCE TYPE LINK
Datasheets CM4024M00009T1521007

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.60.0060
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status ROHS3 Compliant

In Stock: 2650

Can ship immediately.
