CLL914 BK PBFREE

Part Number
CLL914 BK PBFREE
Manufacturer Central Semiconductor
Other Part Numbers
1514-CLL914BKPBFREE-ND
CLL914BK
1514-CLL914BKPBFREE
CLL914 BK-ND
CLL914 BK
CLL914BK-ND
Description DIODE GEN PURP 75V 250MA SOD80
Detailed Description Diode 75 V 250mA Surface Mount SOD-80
Manufacturer Standard Lead Time 15 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Central Semiconductor
Series
Packaging
Bulk
Part Status Active

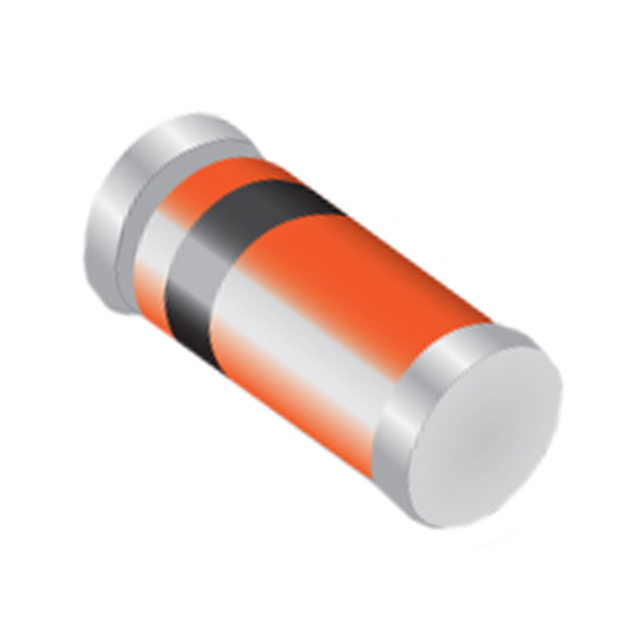

Package / Case DO-213AC, MINI-MELF, SOD-80
Mounting Type Surface Mount
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4 ns
Technology Standard
Capacitance @ Vr, F 4pF @ 0V, 1MHz
Current - Average Rectified (Io) 250mA
Supplier Device Package SOD-80
Operating Temperature - Junction -65°C ~ 200°C
Voltage - DC Reverse (Vr) (Max) 75 V
Voltage - Forward (Vf) (Max) @ If 1 V @ 10 mA
Current - Reverse Leakage @ Vr 5 µA @ 75 V

Documents & Media

RESOURCE TYPE LINK
Datasheets CLL914 BK PBFREE
Datasheets RoHS Cert

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0070
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
