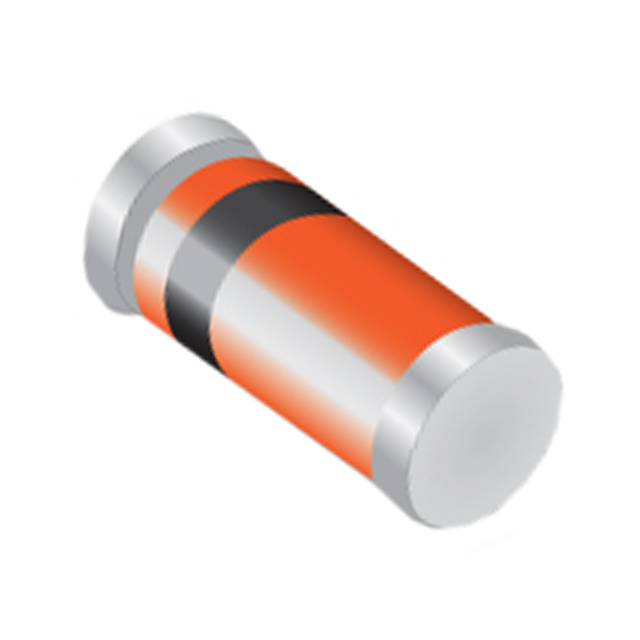

CLL5247B BK PBFREE

CLL5247B BK PBFREE

Part Number	CLL5247B BK PBFREE
Manufacturer	Central Semiconductor
Other Part Numbers	1514-CLL5247BBKPBFREE-ND 1514-CLL5247BBKPBFREE CLL5247B BK CLL5247B BK-ND CLL5247BBK-ND CLL5247BBK
Description	DIODE ZENER 17V 500MW SOD80
Detailed Description	Zener Diode 17 V 500 mW ±5% Surface Mount SOD-80
Manufacturer Standard Lead Time	15 weeks

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		Central Semiconductor
Series
Packaging		Bulk
Part Status		Active
Tolerance		±5%
Package / Case		DO-213AC, MINI-MELF, SOD-80
Mounting Type		Surface Mount
Operating Temperature		-65°C ~ 200°C
Voltage - Zener (Nom) (Vz)		17 V
Impedance (Max) (Zzt)		19 Ohms
Supplier Device Package		SOD-80
Power - Max		500 mW
Voltage - Forward (Vf) (Max) @ If		1.25 V @ 200 mA
Current - Reverse Leakage @ Vr		100 nA @ 13 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CLL5247B BK PBFREE
Datasheets		RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
