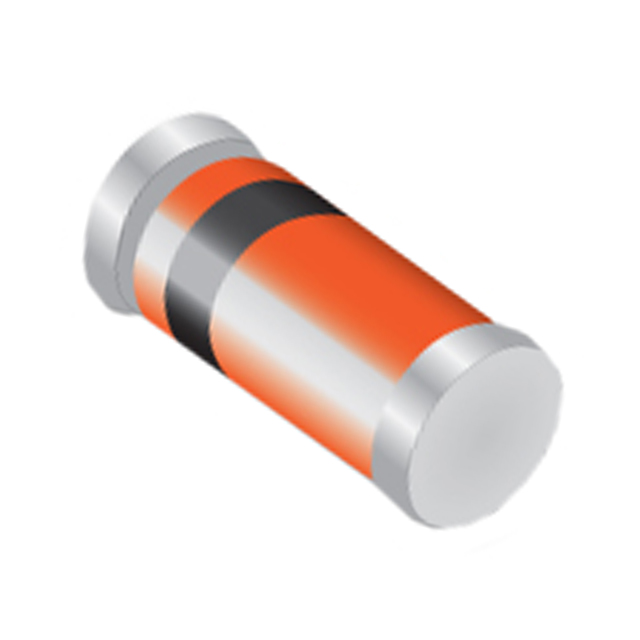

CLL5225B BK TIN/LEAD

Part Number
CLL5225B BK TIN/LEAD
Manufacturer Central Semiconductor
Other Part Numbers
1514-CLL5225BBKTIN/LEAD-ND
-1583-CLL5225BBKTIN/LEAD
1514-CLL5225BBKTIN/LEAD
Description SURFACE MOUNT-DIODE-ZENER
Detailed Description Zener Diode 3 V 500 mW ±5% Surface Mount SOD-80
Manufacturer Standard Lead Time 8 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Central Semiconductor
Series
Packaging
Box
Part Status Active
Tolerance ±5%
Package / Case DO-213AC, MINI-MELF, SOD-80
Mounting Type Surface Mount
Operating Temperature -65°C ~ 200°C (TJ)
Voltage - Zener (Nom) (Vz) 3 V
Impedance (Max) (Zzt) 29 Ohms
Supplier Device Package SOD-80
Power - Max 500 mW
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 200 mA
Current - Reverse Leakage @ Vr 50 µA @ 1 V

Documents & Media

RESOURCE TYPE LINK
Datasheets CLL5225B BK TIN/LEAD
Datasheets RoHS Cert

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0050
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant

In Stock: 2114

Can ship immediately.
