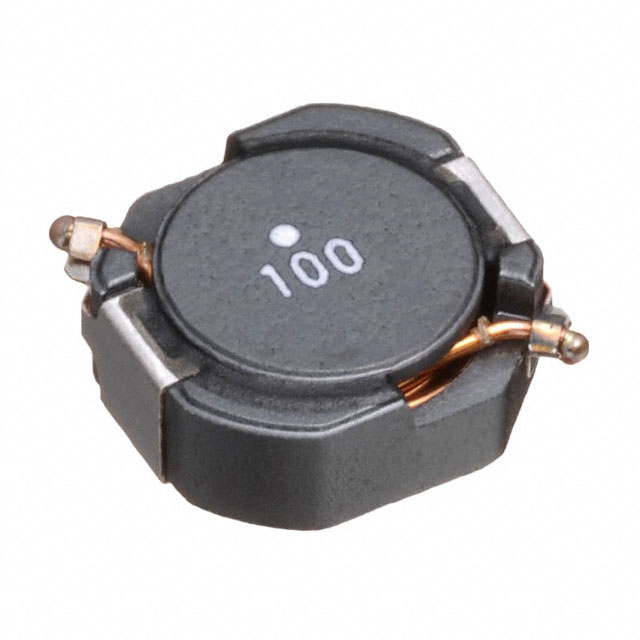

CLF12555T-331M-CA

Part Number
CLF12555T-331M-CA
Manufacturer TDK Corporation
Other Part Numbers
445-173890-2-ND
445-173890-1-ND
445-173890-6-ND
445-173890-2
445-173890-1
CLF12555T-331M-CA-ND
445-173890-6
Description FIXED IND 330UH 700MA 672MOHM SM
Detailed Description 330 µH Shielded Drum Core, Wirewound Inductor 700 mA 672mOhm Max Nonstandard

Product Attributes

Category
Manufacturer TDK Corporation
Series
CLF-CA
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Obsolete
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.492" L x 0.476" W (12.50mm x 12.10mm)
Mounting Type Surface Mount
Shielding Shielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 105°C
DC Resistance (DCR) 672mOhm Max
Ratings AEC-Q200
Current - Saturation (Isat) 1.2A
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.230" (5.85mm)
Inductance 330 µH
Current Rating (Amps) 700 mA

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
