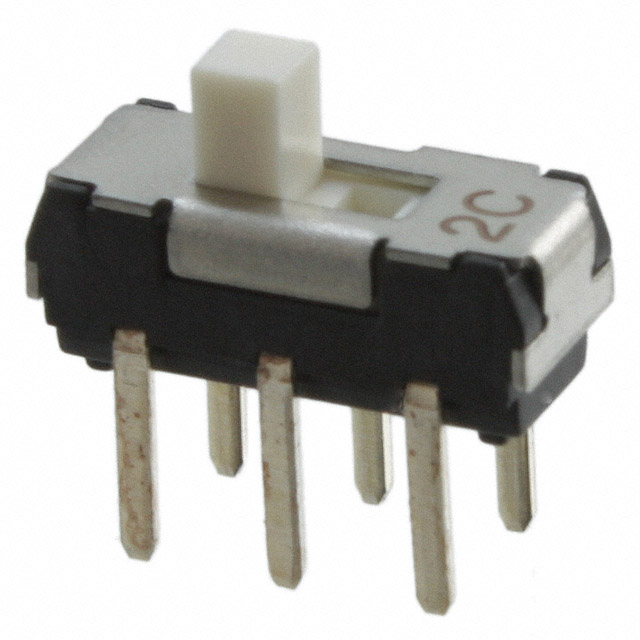

CL-SB-22C-01

CL-SB-22C-01

Part Number	CL-SB-22C-01
Manufacturer	Nidec Copal Electronics (Nidec Components)
Other Part Numbers	563-1346-ND CLSB22C01 563-1346
Description	SWITCH SLIDE DPDT 200MA 12V
Detailed Description	Slide Switch DPDT Through Hole
Manufacturer Standard Lead Time	10 weeks

Product Attributes

Category		Switches Slide Switches
Manufacturer		Nidec Copal Electronics (Nidec Components)
Series		CL-SB
Packaging		Bulk
Part Status		Active
Contact Finish		Silver
Current Rating (Amps)		200mA (DC)
Mounting Type		Through Hole
Circuit		DPDT
Switch Function		On-On
Operating Temperature		-40°C ~ 85°C
Termination Style		PC Pin
Actuator Length		2.00mm
Actuator Type		Standard
Contact Material		Copper
Contact Timing		Non-Shorting (BBM)
Voltage Rating - DC		12 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3139

Can ship immediately.
