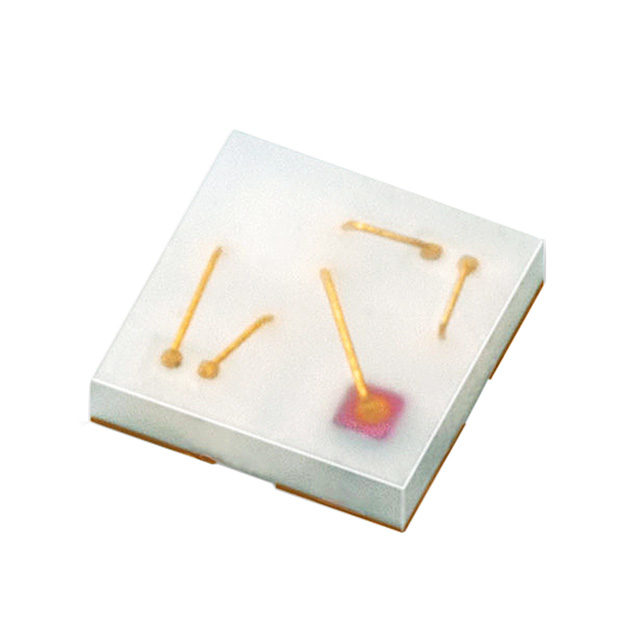

CL-505S-X-SD-T

CL-505S-X-SD-T

Part Number	CL-505S-X-SD-T
Manufacturer	Citizen Electronics Co., Ltd.
Other Part Numbers	1642-CL-505S-X-SD-TTR-ND 1642-CL-505S-X-SD-TCT-ND 1642-CL-505S-X-SD-TDKR-ND 1642-1510-1-ND 1642-1510-2-ND CL-505S-X-K3 1642-CL-505S-X-SD-TTR CL-505S-X-SD 1642-1510-6-ND 1642-CL-505S-X-SD-TCT 1642-1510-6 1642-1510-1 1642-CL-505S-X-SD-TDKR 1642-1510-2
Description	LED RGB SMD 1.0 X 1.0
Detailed Description	Red, Green, Blue (RGB) 615nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 1.85V Red, 2.7V Green, 2.75V Blue 0404 (1010 Metric)
Manufacturer Standard Lead Time	63 weeks

Product Attributes

Category		Optoelectronics LED Indication - Discrete
Manufacturer		Citizen Electronics Co., Ltd.
Series		CL-505S
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		0404 (1010 Metric)
Color		Red, Green, Blue (RGB)
Size / Dimension		1.00mm L x 1.00mm W
Mounting Type		Surface Mount
Millicandela Rating		40mcd Red, 220mcd Green, 65mcd Blue
Configuration		Common Anode
Voltage - Forward (Vf) (Typ)		1.85V Red, 2.7V Green, 2.75V Blue
Current - Test		5mA Red, 5mA Green, 5mA Blue
Height (Max)		0.26mm
Wavelength - Dominant		615nm Red, 530nm Green, 470nm Blue
Lens Style		Square with Flat Top
Lens Size		1.00mm

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CL-505S-X-SD-T

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 12697

Can ship immediately.
