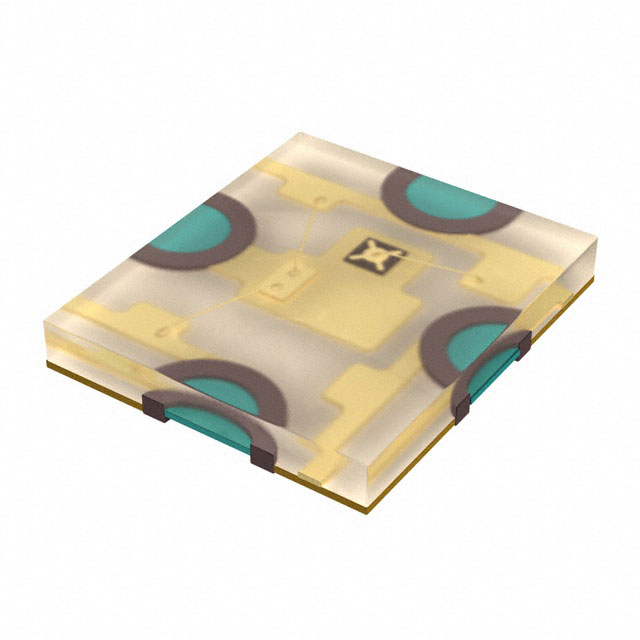

CL-503T-SD-T

CL-503T-SD-T

Part Number	CL-503T-SD-T
Manufacturer	Citizen Electronics Co., Ltd.
Other Part Numbers	1642-CL-503T-SD-TTR-ND 1642-CL-503T-SD-TCT-ND 1642-CL-503T-SD-TDKR-ND 1642-1509-2 1642-1509-1-ND 1642-CL-503T-SD-TDKR 1642-CL-503T-SD-TTR CL-503T-K3 Q11983170 1642-1509-1 CL-503T-SD 1642-1509-6-ND 1642-1509-6 1642-1509-2-ND 1642-CL-503T-SD-TCT
Description	LED RGB SMD 1.5 X 1.3
Detailed Description	Red, Green, Blue (RGB) LED Indication - Discrete 1.85V Red, 2.7V Green, 2.75V Blue 4-SMD, No Lead
Manufacturer Standard Lead Time	56 weeks
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LED Indication - Discrete
Manufacturer		Citizen Electronics Co., Ltd.
Series		CL-503
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Color		Red, Green, Blue (RGB)
Size / Dimension		1.50mm L x 1.30mm W
Mounting Type		Surface Mount
Millicandela Rating		36mcd Red, 180mcd Green, 40mcd Blue
Configuration		Common Anode
Voltage - Forward (Vf) (Typ)		1.85V Red, 2.7V Green, 2.75V Blue
Current - Test		5mA Red, 5mA Green, 5mA Blue
Height (Max)		0.35mm
Wavelength - Peak		618nm Red, 530nm Green, 470nm Blue
Lens Style		Rectangle with Flat Top
Lens Size		1.30mm x 1.50mm

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CL-503T-SD-T

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
