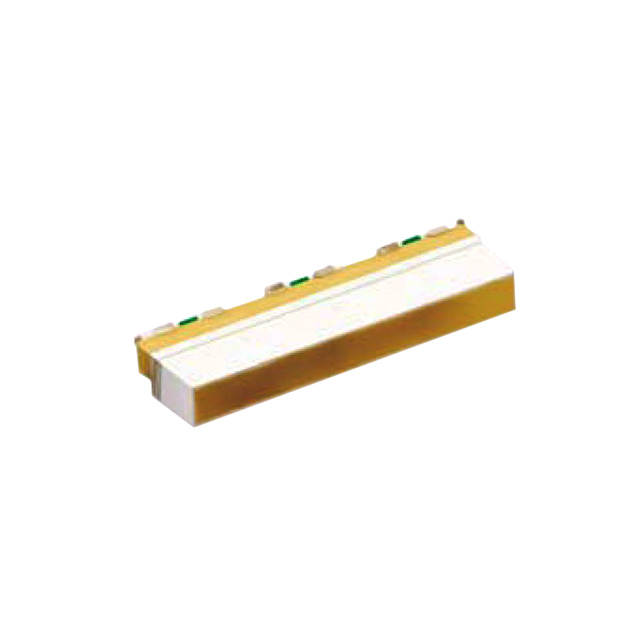

CL-426F-AACC-SD-TS

CL-426F-AACC-SD-TS

Part Number	CL-426F-AACC-SD-TS
Manufacturer	Citizen Electronics Co., Ltd.
Other Part Numbers	1642-CL-426F-AACC-SD-TSTR-ND 1642-CL-426F-AACC-SD-TSCT-ND 1642-CL-426F-AACC-SD-TSDKR-ND 1642-CL-426F-AACC-SD-TSTR 1642-1513-6 CL-426F-AACC-SD CL-426F-AACC-S3 1642-CL-426F-AACC-SD-TSCT 1642-1513-2 1642-1513-1 1642-1513-6-ND 1642-CL-426F-AACC-SD-TSDKR 1642-1513-1-ND 1642-1513-2-ND
Description	LED RGB SMD R/A
Detailed Description	Red, Green, Blue (RGB) 628nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2V Red, 2.7V Green, 2.8V Blue 4-SMD, No Lead
Manufacturer Standard Lead Time	70 weeks

Product Attributes

Category		Optoelectronics LED Indication - Discrete
Manufacturer		Citizen Electronics Co., Ltd.
Series		CL-426
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Color		Red, Green, Blue (RGB)
Size / Dimension		2.80mm L x 0.85mm W
Mounting Type		Surface Mount, Right Angle
Millicandela Rating		120mcd Red, 250mcd Green, 62mcd Blue
Configuration		Common Cathode
Voltage - Forward (Vf) (Typ)		2V Red, 2.7V Green, 2.8V Blue
Current - Test		5mA Red, 5mA Green, 5mA Blue
Height (Max)		0.35mm
Wavelength - Dominant		628nm Red, 530nm Green, 470nm Blue
Lens Style		Rectangle with Flat Top
Lens Size		2.80mm x 0.35mm

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 889

Can ship immediately.
