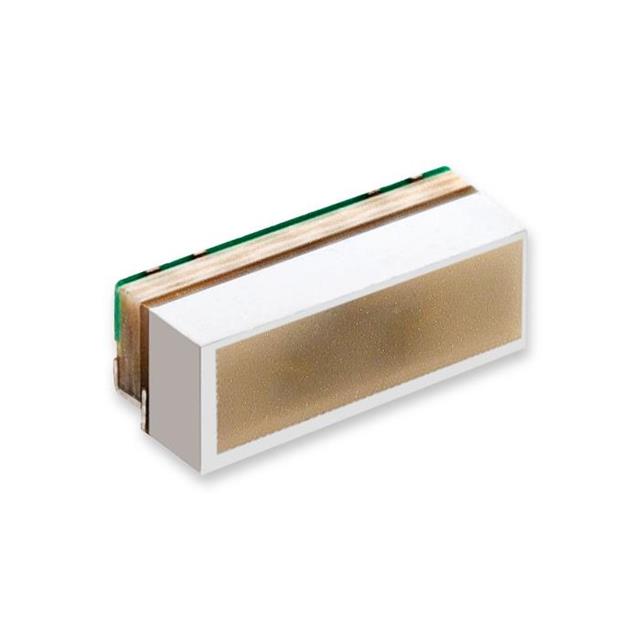

CL-421-C4-SD-TS

CL-421-C4-SD-TS

Part Number	CL-421-C4-SD-TS
Manufacturer	Citizen Electronics Co., Ltd.
Other Part Numbers	1642-CL-421-C4-SD-TSTR-ND 1642-CL-421-C4-SD-TSCT-ND 1642-CL-421-C4-SD-TSDKR-ND CL-421C4-S4 1642-CL-421-C4-SD-TSDKR 1642-CL-421-C4-SD-TSTR 1642-CL-421-C4-SD-TSCT
Description	LED RGB SMD R/A
Detailed Description	Red, Green, Blue (RGB) 624nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2.2V Red, 3.45V Green, 3.2V Blue 4-SMD, No Lead
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LED Indication - Discrete
Manufacturer		Citizen Electronics Co., Ltd.
Series		CL-421
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Color		Red, Green, Blue (RGB)
Size / Dimension		2.80mm L x 1.35mm W
Mounting Type		Surface Mount, Right Angle
Millicandela Rating		700mcd Red, 1350mcd Green, 400mcd Blue
Configuration		Common Anode
Voltage - Forward (Vf) (Typ)		2.2V Red, 3.45V Green, 3.2V Blue
Current - Test		20mA Red, 20mA Green, 20mA Blue
Height (Max)		1.00mm
Wavelength - Dominant		624nm Red, 530nm Green, 470nm Blue
Lens Style		Rectangle with Flat Top
Lens Size		2.60mm x 0.80mm

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CL-421-C4-SD-TS

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2188

Can ship immediately.
