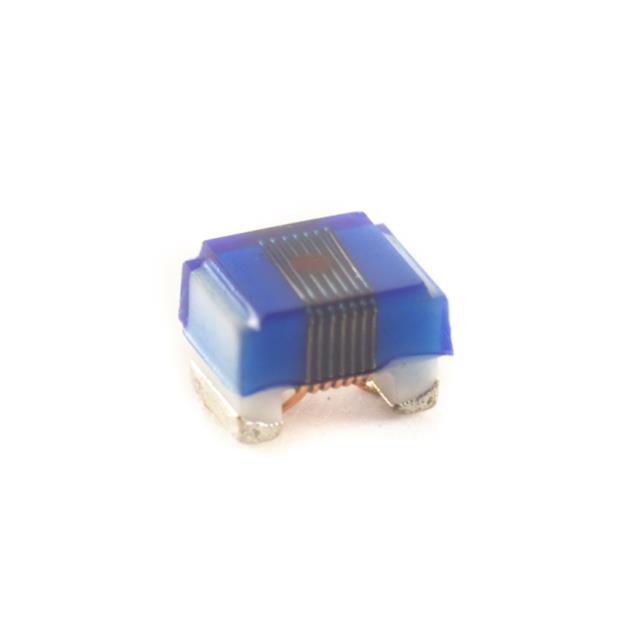

CHQ05-5N6J-RC _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	CHQ05-5N6J-RC
Manufacturer	Allied Components International
Other Part Numbers	3475-CHQ05-5N6J-RCTR-ND 3475-CHQ05-5N6J-RCTR
Description	5.6NH 5% CERAMIC CORE HI Q CHIP
Detailed Description	5.6 nH Unshielded Wirewound Inductor 1.6 A 35mOhm Max 0805 (2012 Metric)
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Allied Components International
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±5%
Package / Case		0805 (2012 Metric)
Size / Dimension		0.090" L x 0.070" W (2.29mm x 1.78mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		35mOhm Max
Q @ Freq		98 @ 1.5GHz
Frequency - Self Resonant		6GHz
Material - Core		Ceramic
Inductance Frequency - Test		250 MHz
Supplier Device Package		0805
Height - Seated (Max)		0.060" (1.52mm)
Inductance		5.6 nH
Current Rating (Amps)		1.6 A

RESOURCE TYPE		LINK
Datasheets		CHQ05-5N6J-RC

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH info available upon request
RoHS Status		RoHS Compliant
