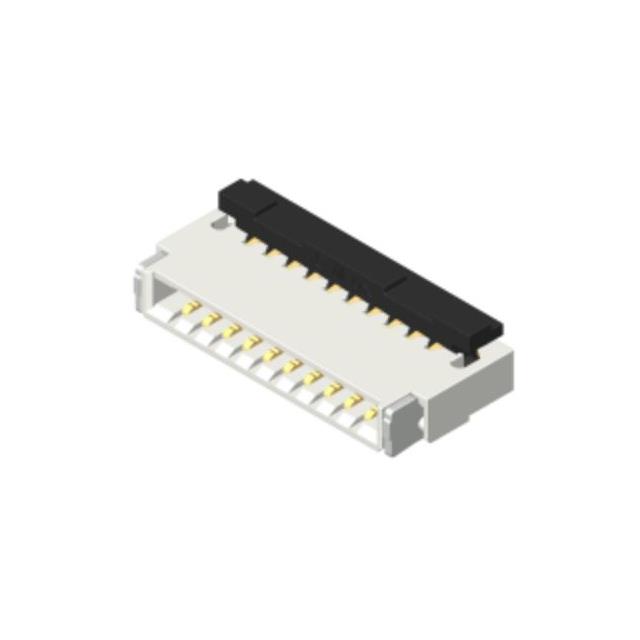

CF8720WH0R0-05-NH _ FFC, FPC (Flat Flexible) Connector Assemblies_FFC, FPC (Flat Flexible) Connectors_Connectors, Interconnects

Part Number	CF8720WH0R0-05-NH
Manufacturer	CviLux
Other Part Numbers	2987-CF8720WH0R0-05-NHTR-ND 2987-CF8720WH0R0-05-NHCT-ND 2987-CF8720WH0R0-05-NHDKR-ND 2987-CF8720WH0R0-05-NHCT 2987-CF8720WH0R0-05-NHTR 2987-CF8720WH0R0-05-NHDKR
Description	CONN FFC FPC 20POS 0.5MM R/A
Detailed Description	20 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer		CviLux
Series		CF87
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Solder Retention, Zero Insertion Force (ZIF)
Mounting Type		Surface Mount, Right Angle
Number of Positions		20
Pitch		0.020" (0.50mm)
Termination		Solder
Height Above Board		0.039" (1.00mm)
Locking Feature		Flip Lock, Backlock
Material Flammability Rating		UL94 V-0
Actuator Material		Thermoplastic, Halogen Free
Contact Material		Phosphor Bronze
FFC, FCB Thickness		0.30mm
Housing Material		Thermoplastic, Halogen Free
Cable End Type		Notched
Housing Color		Black
Actuator Color		Black
Flat Flex Type		FFC, FPC
Connector/Contact Type		Contacts, Top and Bottom

RESOURCE TYPE		LINK
Datasheets		CF8720WH0R0-05-NH

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
