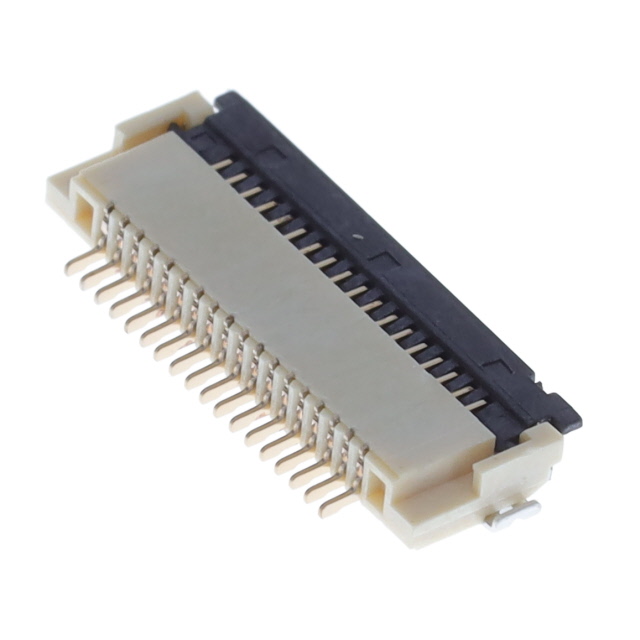

CF5010FD0R0-05-NH _ FFC, FPC (Flat Flexible) Connector Assemblies_FFC, FPC (Flat Flexible) Connectors_Connectors, Interconnects

Part Number	CF5010FD0R0-05-NH
Manufacturer	CviLux
Other Part Numbers	2987-CF5010FD0R0-05-NHTR-ND 2987-CF5010FD0R0-05-NHCT-ND 2987-CF5010FD0R0-05-NHDKR-ND 2987-CF5010FD0R0-05-NHTR 2987-CF5010FD0R0-05-NHCT 2987-CF5010FD0R0-05-NHDKR
Description	CONN FFC BOTTOM 10POS 0.5MM R/A
Detailed Description	10 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer		CviLux
Series		CF50
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Solder Retention, Zero Insertion Force (ZIF)
Contact Finish		Gold
Voltage Rating		50V
Mounting Type		Surface Mount, Right Angle
Number of Positions		10
Pitch		0.020" (0.50mm)
Operating Temperature		-40°C ~ 85°C
Termination		Solder
Height Above Board		0.057" (1.45mm)
Locking Feature		Rotary Lock
Material Flammability Rating		UL94 V-0
Actuator Material		Thermoplastic, Halogen Free
Contact Material		Phosphor Bronze
FFC, FCB Thickness		0.30mm
Housing Material		Thermoplastic, Halogen Free
Cable End Type		Straight
Flat Flex Type		FFC, FPC
Connector/Contact Type		Contacts, Bottom

RESOURCE TYPE		LINK
Datasheets		CF5010FD0R0-05-NH

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
