CF4234FH0R0-05-NH _ FFC, FPC (Flat Flexible) Connector Assemblies_FFC, FPC (Flat Flexible) Connectors_Connectors, Interconnects

Part Number	CF4234FH0R0-05-NH
Manufacturer	CviLux
Other Part Numbers	2987-CF4234FH0R0-05-NHTR-ND 2987-CF4234FH0R0-05-NHCT-ND 2987-CF4234FH0R0-05-NHDKR-ND 2987-CF4234FH0R0-05-NHDKR 2987-CF4234FH0R0-05-NHCT 2987-CF4234FH0R0-05-NHTR

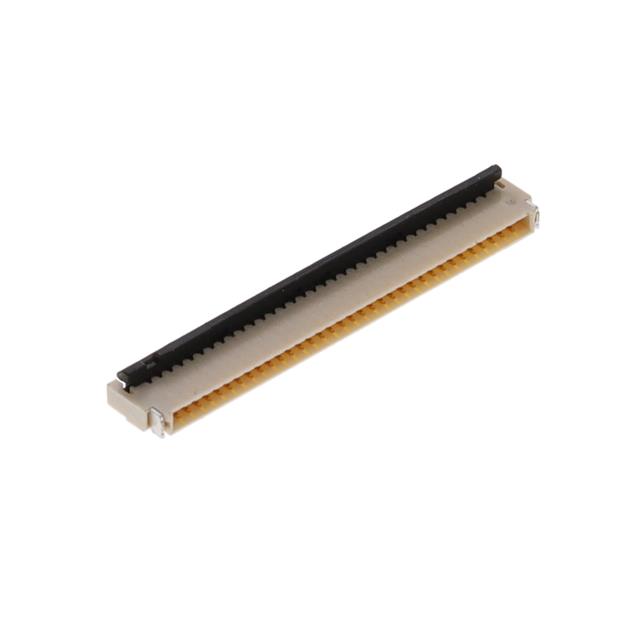

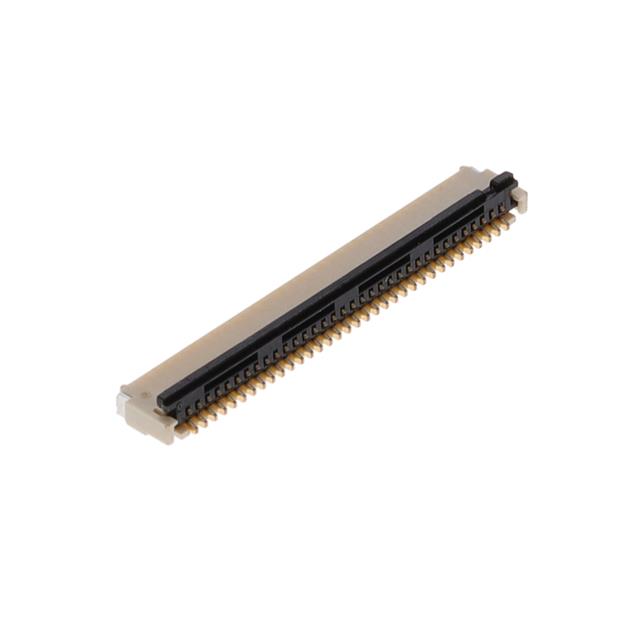

Description	CONN FFC FPC 34POS 0.5MM R/A
Detailed Description	34 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer		CviLux
Series		CF42
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Solder Retention, Zero Insertion Force (ZIF)
Contact Finish		Gold
Voltage Rating		50V
Current Rating (Amps)		0.5A
Mounting Type		Surface Mount, Right Angle
Number of Positions		34
Pitch		0.020" (0.50mm)
Operating Temperature		-55°C ~ 85°C
Termination		Solder
Height Above Board		0.038" (0.97mm)
Contact Finish Thickness		0.79µin (0.02µm)
Locking Feature		Flip Lock, Backlock
Material Flammability Rating		UL94 V-0
Actuator Material		Thermoplastic, Halogen Free
Contact Material		Phosphor Bronze
FFC, FCB Thickness		0.30mm
Housing Material		Thermoplastic, Halogen Free
Cable End Type		Straight
Housing Color		Natural
Actuator Color		Black
Flat Flex Type		FFC, FPC
Connector/Contact Type		Contacts, Top and Bottom

RESOURCE TYPE		LINK
Datasheets		CF4234FH0R0-05-NH

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
